Bosch Sound projector 20W metal unidirectional
Pozvati za cenu

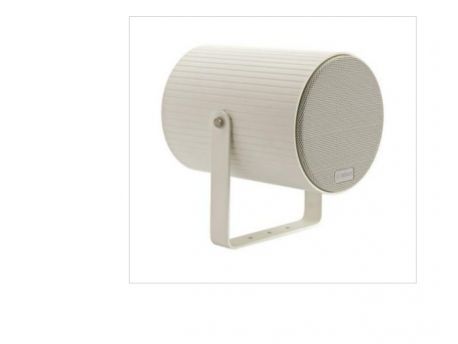

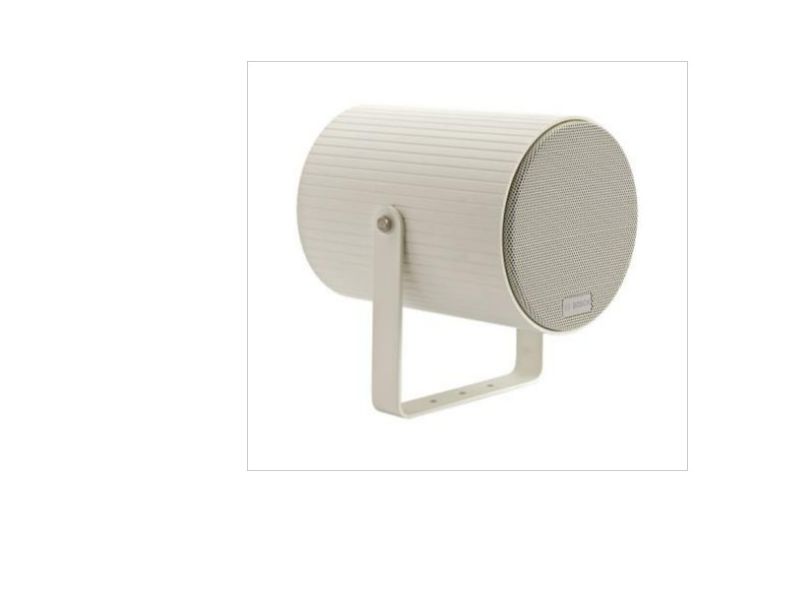

The LBC 3432/03 is a powerful 20 W sound projector intended for speech and music reproduction in indoor and outdoor applications. The sturdy, aluminum enclosure is finished in the color white. It has provisions for cable loop through connection and inside mounting of a line- or loudspeaker supervision board. The sound projector is suitable for use in voice alarm systems.
- - Excellent speech and music reproduction
- - Provision for supervision board mounting
- - (Suspended) ceiling and/or wall mounting
- - Water and dust protected to IP 66
- - EN 54‑24 certified
| Color | White; Customized colors |
| Coverage angle HxV (-6 dB, 1 kHz) (°) | 180 x 180 ° |
| Coverage angle HxV (-6 dB, 4 kHz) (°) | 50 x 50 ° |
| Dimensions (Ø x D) (mm) | 146 x 200 mm |
| Frequency range (-10 dB) (Hz) | 180 – 20000 Hz |
| IP rating | IP66 |
| Material | Aluminum |
| Operating relative humidity, non-condensing (%) | 0 – 95 % |
| Operating temperature (°C) | -25 – 55 °C |
| Rated input voltage (V) | 100 V |
| Rated power (W) | 20 W |
| Sensitivity (1 W, 1 m, 1 kHz octave) (dB) | 93 dB |
| Sensitivity (1 W, 4 m, 100 Hz - 10 kHz) (dB) | 81 dB |
| Storage temperature (°C) | -40 – 70 °C |
| Weight (kg) | 2.6 kg |
-
LBC3432_03_Data_sheet_enUS_14023155723
-
LBC3432_03_Quick_Installation_Guide_enUS_16847865099
-
Certificate_EU_DoP_all_101205843467
-
Certificate_PL_CNBOP_plPL_88138110603
-
Certificate_EU_CE_all_36028809997314699
