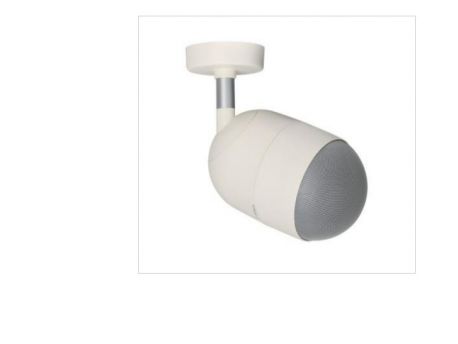

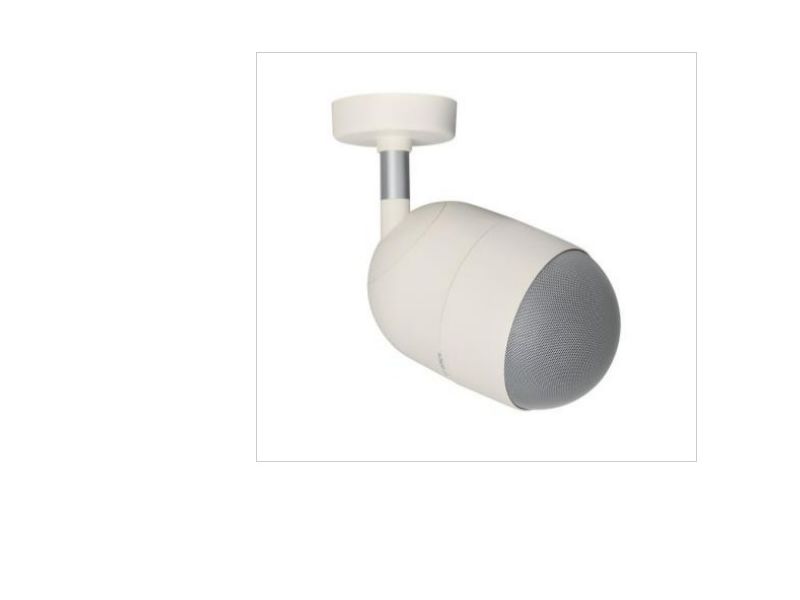

Bosch Sound projector, 20W, uni-directional
Pozvati za cenu
The LP1‑UC20E‑1 is a powerful 20 W sound projector intended for high quality speech and music reproduction in indoor and outdoor applications. The state‑of‑the‑art design is matched to both modern and traditional style environments. The sound projector is suitable for use in voice alarm systems.
| Color | White; Customized colors |
| Coverage angle HxV (-6 dB, 1 kHz) (°) | 220 x 220 ° |
| Coverage angle HxV (-6 dB, 4 kHz) (°) | 65 x 65 ° |
| Frequency range (-10 dB) (Hz) | 75 – 20000 Hz |
| IP rating | IP65 |
| Material | Plastic; Metal |
| Operating temperature (°C) | -25 – 55 °C |
| Rated input voltage (V) | 100 V |
| Rated power (W) | 20 W |
| Sensitivity (1 W, 1 m, 1 kHz octave) (dB) | 87 dB |
| Storage temperature (°C) | -40 – 70 °C |
| Weight (kg) | 3 kg |
-
LP1_UC20E_1_Data_sheet_enUS_18014400439098763
-
LP1‑UC10E‑1_Installation_Manual_enUS_18014400438674955 (1)
-
Certificate_PL_CNBOP_plPL_1929197707
-
Declaration_of_Compl_Certificate_GL_DOC_enUS_9007243221468427 (20)
-
DECL_DoP_Certificate_EU_DoP_all_18014416087918091 (2)
-
EU_CE_Certificate_EU_CE_all_18014441580430091
-
Certificate_GB_UKCA_enUS_96111895435
