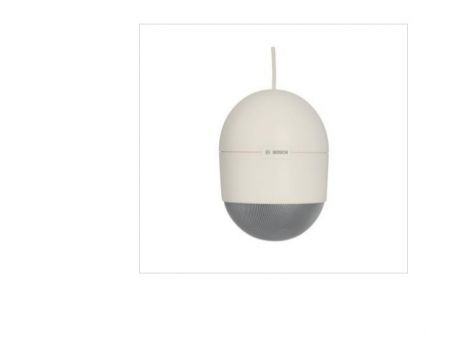

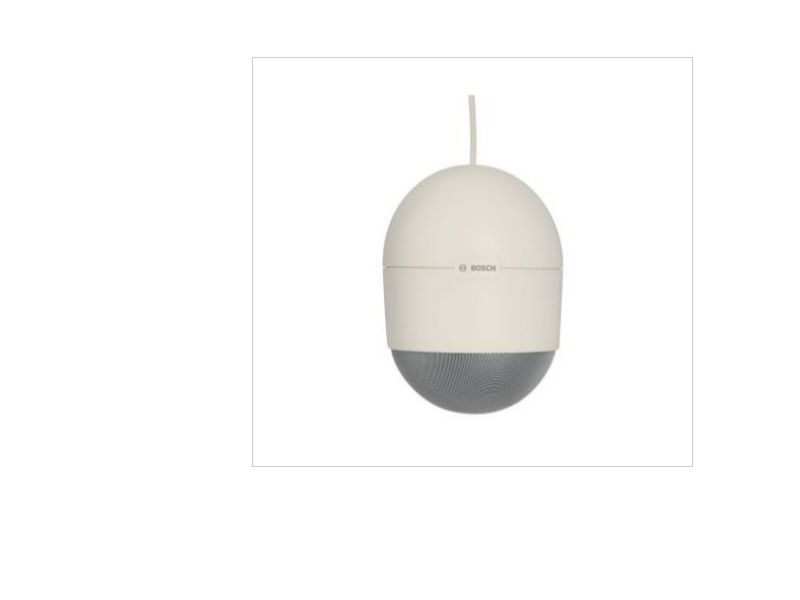

Bosch Pendant sphere loudspeaker, 20W
Pozvati za cenu
Sound spheres are pendant sound projectors designed to be suspended from the ceiling by their connecting cables. Their excellent sound spread makes them ideal for use in buildings with high ceilings, such as hypermarkets and superstores. The LS1‑UC20E‑1 is a powerful 20 W pendant sphere loudspeaker, intended for high quality speech and music reproduction. The state‑of‑the‑art design is matched to both modern and traditional style environments. The loudspeaker is suitable for use in voice evacuation systems.
- - Superb speech and music reproduction
- - 5 m connection cable
- - Provision for optional safety cord
- - Water and dust protected to IP 65
- - EN 54‑24 certified
| Color | White; Customized colors |
| Coverage angle HxV (-6 dB, 1 kHz) (°) | 220 x 220 ° |
| Coverage angle HxV (-6 dB, 4 kHz) (°) | 65 x 65 ° |
| Frequency range (-10 dB) (Hz) | 80 – 20000 Hz |
| Material | Plastic |
| Operating relative humidity, non-condensing (%) | 0 – 95 % |
| Operating temperature (°C) | -25 – 55 °C |
| Rated input voltage (V) | 100 V |
| Rated power (W) | 20 W |
| Storage temperature (°C) | -40 – 70 °C |
| Weight (kg) | 3 kg |
-
LS1_UC20E_1_Data_sheet_enUS_18014400439536139
-
LS1_UC20E_1_Installation_Manual_enUS_27021599694289931
-
Declaration_of_Compl_Certificate_GL_DOC_enUS_9007243221468427 (16)
-
DECL_DoP_Certificate_EU_DoP_all_18014416087918091
-
EU_CE_Certificate_EU_CE_all_18014454938948363
-
Certificate_GB_UKCA_enUS_96111937419 (1)
