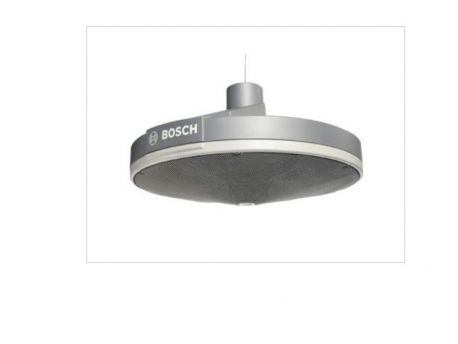

Bosch Hemi-directional loudspeaker, 100W
Pozvati za cenu
The Bosch Hemi-directional Loudspeaker is an easy to install, innovative loudspeaker which projects consistent and high quality sound, ensuring superb reproduction of background music and high speech intelligibility for paging or emergency calls. The speaker’s opening angle and high sound pressure level allows it to cover at least 700 m2, making it extremely
suitable for indoor high‑ceiling areas like warehouses, transport and exhibition halls, mega stores and swimming pools.
- For large area, high-ceiling applications
- Optional bracket for fixed mounting
- Self‑restoring tweeter overload protection
- Provision for internal mounting of the optional line/loudspeaker supervision board
- EN 54-24 certified
suitable for indoor high‑ceiling areas like warehouses, transport and exhibition halls, mega stores and swimming pools.
- For large area, high-ceiling applications
- Optional bracket for fixed mounting
- Self‑restoring tweeter overload protection
- Provision for internal mounting of the optional line/loudspeaker supervision board
- EN 54-24 certified
Color White
Coverage angle HxV (-6 dB, 1 kHz) (°) 175 x 180 °
Coverage angle HxV (-6 dB, 4 kHz) (°) 96 x 137 °
Frequency range (-10 dB) (Hz) 60 – 20000 Hz
Material Plastic (ABS)
Operating relative humidity, non-condensing (%) 0 – 95 %
Operating temperature (°C) -25 – 55 °C
Rated input voltage (V) 70 V; 100 V
Rated power (W) 100 W
Sensitivity (1 W, 1 m, 1 kHz octave) (dB) 89 dB
Sensitivity (1 W, 4 m, 100 Hz - 10 kHz) (dB) 77 dB
Storage temperature (°C) -40 – 70 °C
Weight (kg) 27 kg
Coverage angle HxV (-6 dB, 1 kHz) (°) 175 x 180 °
Coverage angle HxV (-6 dB, 4 kHz) (°) 96 x 137 °
Frequency range (-10 dB) (Hz) 60 – 20000 Hz
Material Plastic (ABS)
Operating relative humidity, non-condensing (%) 0 – 95 %
Operating temperature (°C) -25 – 55 °C
Rated input voltage (V) 70 V; 100 V
Rated power (W) 100 W
Sensitivity (1 W, 1 m, 1 kHz octave) (dB) 89 dB
Sensitivity (1 W, 4 m, 100 Hz - 10 kHz) (dB) 77 dB
Storage temperature (°C) -40 – 70 °C
Weight (kg) 27 kg
-
