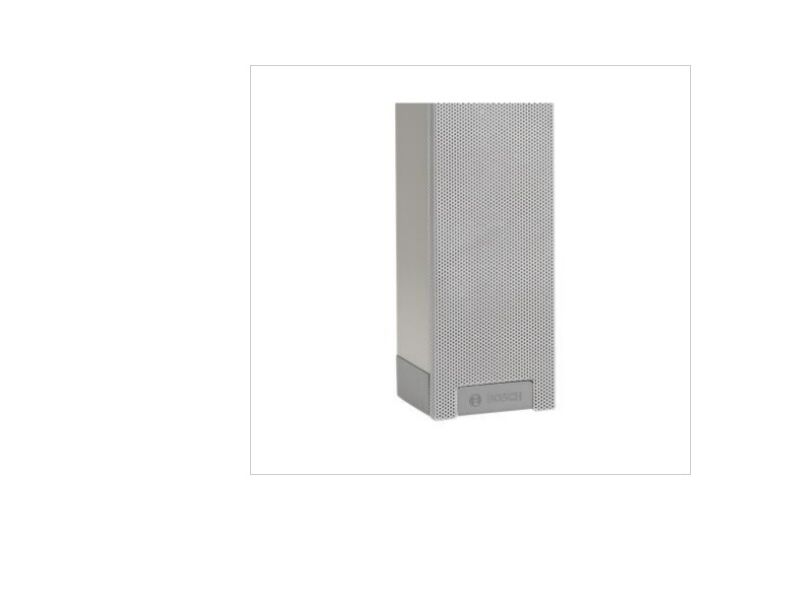

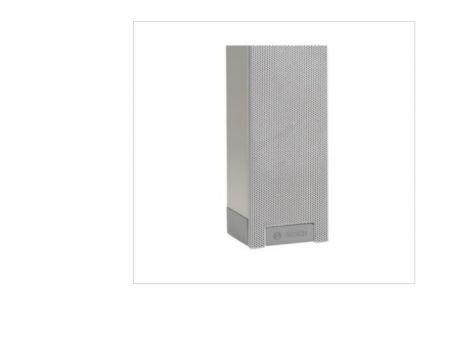

Bosch Line array loudspeaker, 30W
This loudspeaker, with its good directivity, can handle small and medium indoor environments such as congress venues, meeting rooms, showrooms and canteens. The full frequency range of the LBC 3200/00 makes it ideal for speech as well as music reproduction. Its exceptionally narrow housing (only 8 cm wide) makes it extremely unobtrusive.
- - Extended listening area
- - Excellent intelligibility of speech and music
- - Uniform distribution of natural sound throughout the room
- - Ideal combination of advanced acoustics and easy application
- - EN 54‑24 certified
| Color | Gray; Customized colors |
| Coverage angle HxV (-6 dB, 1 kHz) (°) | 220 x 70 ° |
| Coverage angle HxV (-6 dB, 4 kHz) (°) | 130 x 18 ° |
| Dimensions (H x W x D) (mm) | 600 x 80 x 90 mm |
| Frequency range (-10 dB) (Hz) | 190 – 18000 Hz |
| Operating temperature (°C) | -25 – 55 °C |
| Rated power (W) | 30 W |
| Sensitivity (1 W, 1 m, 1 kHz octave) (dB) | 91 dB |
| Sensitivity (1 W, 4 m, 100 Hz - 10 kHz) (dB) | 76 dB |
| Storage temperature (°C) | -40 – 70 °C |
-
LBC_3200_00_Data_sheet_enUS_9007201167764235
-
LBC_3200_00_Installation_Manual_all_1913097099
-
Certificate_PL_CNBOP_plPL_1913652747
-
CCP_LBC32xx_00_Certificate_EU_CPR_all_27021605979720459
-
DoP_Certificate_EU_DoP_all_9007216838437771
