Bosch Cabinet loudspeaker, 15W, white
Pozvati za cenu

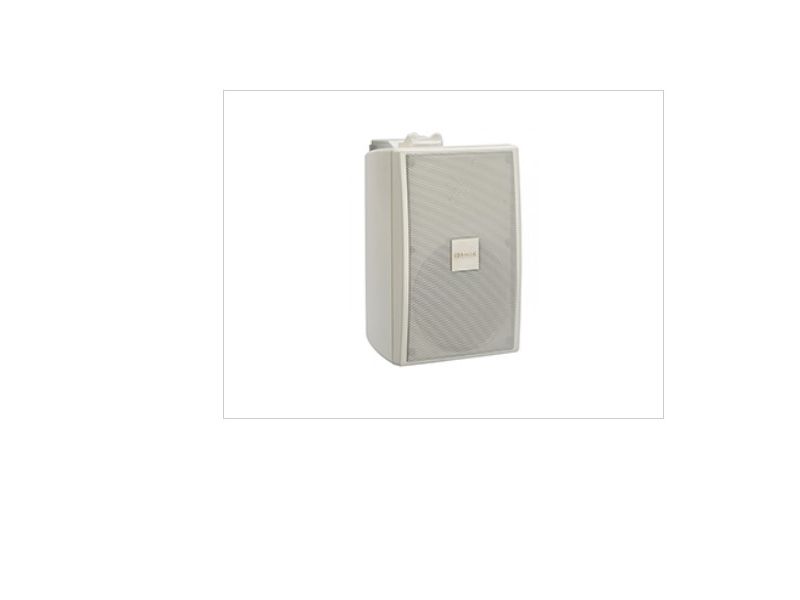

The LB2-UC15-L1 Premium‑sound cabinet loudspeaker is intended for clear reproduction of speech, foreground and background music to be used in general indoor and outdoor applications. The Premium‑sound cabinet loudspeaker consists of a 15 W model, available in a light color. The loudspeaker has selectable 8 ohm, 70 V and 100 V inputs. The ABS cabinets are fitted with aluminum front‑grilles and standard supplied with aluminum bracket. Typical applications are: theme bars, music restaurants, theme parks, retail outlets, audio visual, boardrooms and offices, exhibition areas, showrooms, fitness centers and presentation environments.
- - High-fidelity music and speech reproduction
- - Selectable 8 ohm, 70 V and 100 V inputs
- - Compact yet robust ABS enclosure
- - Supplied with adjustable mounting bracket
- - Complies with international installation and safety regulations
Color | White; Customized colors |
Coverage angle HxV (-6 dB, 1 kHz) (°) | 184 x 170 ° |
Coverage angle HxV (-6 dB, 4 kHz) (°) | 112 x 35 ° |
Dimensions (H x W x D) (mm) | 205 x 136 x 117 mm |
Frequency range (-10 dB) (Hz) | 95 – 20000 Hz |
Operating temperature (°C) | -25 – 55 °C |
Rated input voltage (V) | 70 V; 100 V |
Sensitivity (1 W, 1 m, 1 kHz octave) (dB) | 87 dB |
Storage temperature (°C) | -40 – 70 °C |
Weight (kg) | 1.90 kg |
-
LB2_UC15_L1_Data_sheet_enUS_80218364427
-
LB2_UCxx_x1_Quick_Installation_Guide_enUS_15240189579 (1)
-
Declaration_of_Compl_Certificate_GL_DOC_enUS_9007243221468427 (9)
-
EU_CE_Certificate_EU_CE_all_27021640750009099
-
DECL_IP_LB2_UC15_D1__Certificate_EU_CE_enUS_9007217929276299 (1)
-
Certificate_GB_UKCA_enUS_96090096011
