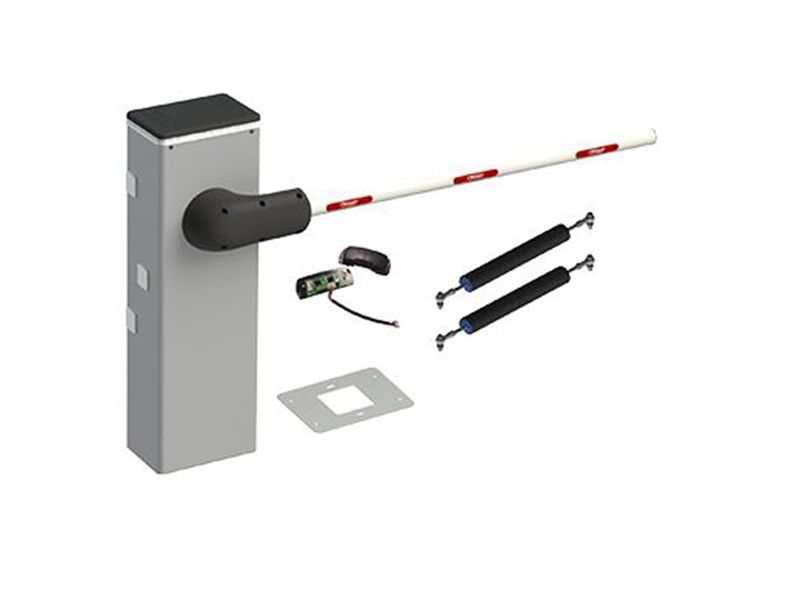

ROGER Roger AUTOMATSKA RAMPA SET BIONIK/001

Roger Roger AUTOMATSKA RAMPA SET BIONIK/001

Brend: Roger
Kod proizvoda: Roger Roger AUTOMATSKA RAMPA SET BIONIK/001
Dostupnost: Na lageru

Cena: 304,440.00 RSD
Bez PDV-a: 253,700.00 RSD

Ruka rampe: Do 3 m dužine

Ucestalost korišcenja: Izuzetno intenzivno korišćenje

Sistem kontrole: Digitalni enkoder Apsolutni enkoder

Napajanje: 230V AC - 115V AC 50/60Hz +-10%

Napajanje motora: 36VDC

Apsorpcije motor: Od 0 do 15A

Snaga motora: 450W

Obrtni moment: Od 10 do 200 Nm

Otvaranje-zatvaranje na 90°: 1 ÷ 3 (sek)

Radna temperatura: - 20 + 55 °C

Dodatna napajanja: 24V DC

Rad na baterije u slučaju nestanka struje

Kontrolna jedinica (ugradena): AG/CTRL Digitalni kontroler 36V DC

Sistem otpuštanja: Evropski ključ kružni

Komplet baterija: Dostupan (opciono)

Radni ciklusi dnevno (otvaranje/zatvaranje-24 sata non-stop): 5000 ciklusa

Barriers:	Up to 3 mt long
Power line supply:	230V AC - 50/60Hz
Motor power supply:	36V DC
Power:	450W
Frequency of use:	Continue use
Torque:	10 - 200 N m
Operating temperature:	- 20 + 55 C°
Protection level:	IP54
Reductor Type:	Irreversible
Opening time:	1 ÷ 3 (sec)
Onboard control unit:	CTRL/P
Encoder:	Digital native encoder + magnetic digital SENSORED, 4096 PPR
Accessories power supply:	24V DC
Colour:	Cabinet: painted RAL9006 arabesque grey - Head: black arabesque silver painted - Boom support: black arabesque silver painted - Boom: painted RAL9010 matt
Release system:	European Key cylinder
Batteries recovery:	Available (optional)
BUS synchronization Master/Slave:	No
Operating cycles per day (opening/closing - 24 hours no stop):	12000
Maximum dimension product in mm (L x W x H):	380 x 270 x 1237
Product weight packed (Kg):	87,6
Number items per pallet/box:	6
