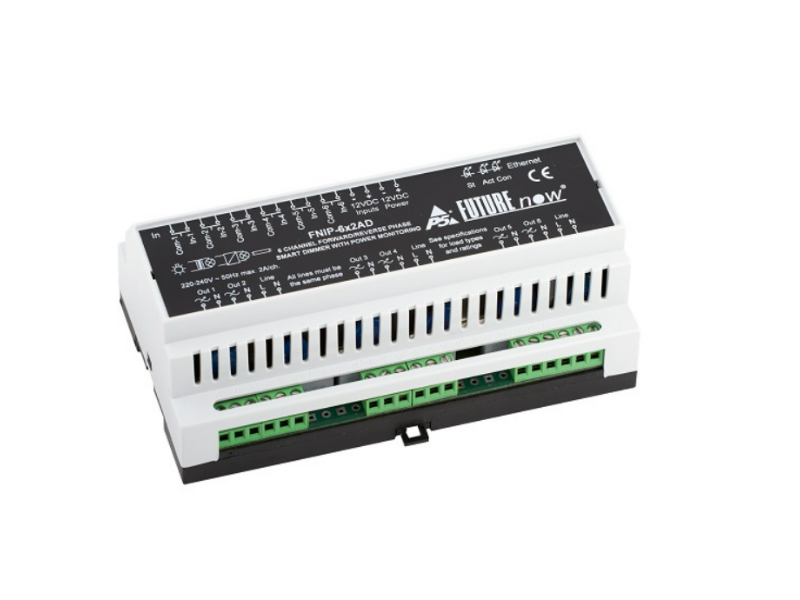

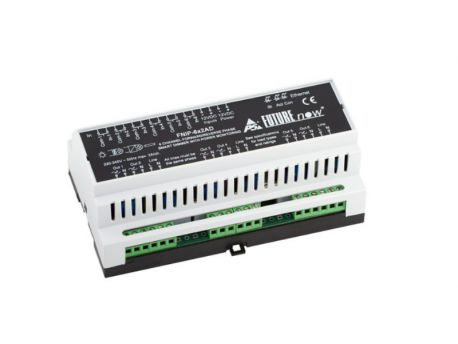

P5 FNIP-6x2AD

Main Features

Robust Operation

• All-in-one dimmer
• 6 outputs for switching and dimming 6 lighting circuits
• 6 galvanically isolated digital inputs for contact sensors or manual operation
• Overheat protection (both from software and hardware)

Ultimate Flexibility

• Switching any load types
• Both trailing and leading edge dimming (dimming of resistive, capacitive and inductive loads)
• Automatic load type detection
• Switching (On/Off) any loads
• Possibility to combine two outputs for more wattage
• Standard DIN Rail mount
• Voltage, frequency, power consumption and temperature metering
• 100 dim levels (800 level hardware resolution)
• Preset dim level – outputs will go to that level when turned on
• Dim level memory (if preset dim level is set to zero) - modules recall their last dim level when next turned on
• Adjustable minimum and maximum dim levels
• Adjustable ramp rates

Enhanced Connectivity

• New TCP/IP interface offers remote control and advanced management
• Built-in web server for configuration, control and monitoring
• Operation via the local computer network or over the Internet
• Remote control and monitoring from network enabled smartphones and tablets
• Multiple users with different user rights
• TCP communication with simple ASCII commands
• Available communication protocol
• Automatic event reporting of input and output status changes
• Firmware upgrade via LAN

Industry-Wide Interoperability

• Easy integration with home controllers
• Interoperability with any momentary contact switches available on the market
