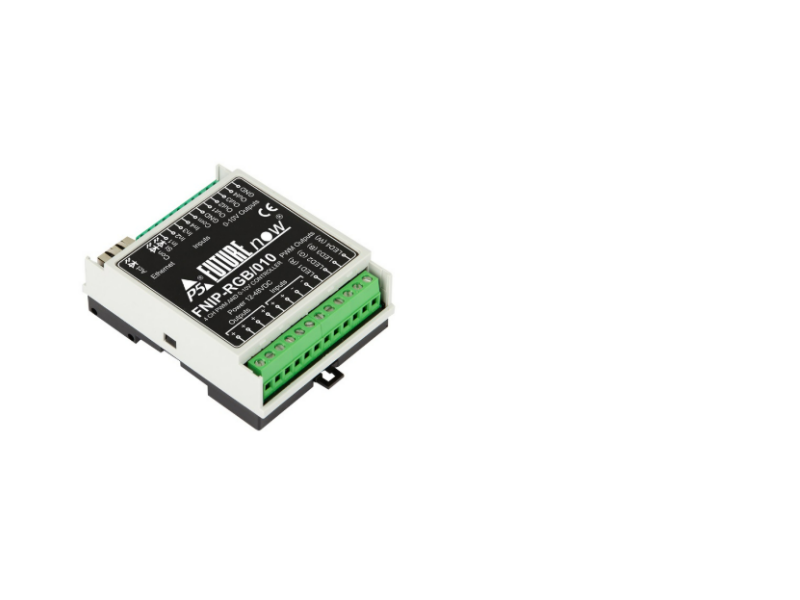

P5 FNIP-RGB/010

Main features

·         4 channel single color LED lighting or one channel RGB(W) control
·         4 channels of analog 0 – 10V control
·         Remote control over LAN
·         Local control inputs

-       DIN-rail or surface (additional ears needed) mount
-       4 x 0-10V control outputs for valves, fans, lighting, etc.
-       4 x 8A low-voltage, PWM control outputs (max 400W/channel at 48V)
-       Simple connection for the LEDs (power is distributed within the module)
-       4 optically isolated multi-purpose digital inputs for contact sensors and manual operation
-       Single color, RGB and RGBW LED strip support
-       Built-in web server for configuration, control and monitoring
-       Color picker
-       TCP communication protocol (API) with simple ASCII commands
-       Free mobile apps
-       Multiple users with different user rights
-       Automatic event reporting of input and output status changes
-       Firmware upgrade via LAN
-       Scenes stored in the modules can be activated from any input on any module on the network.
