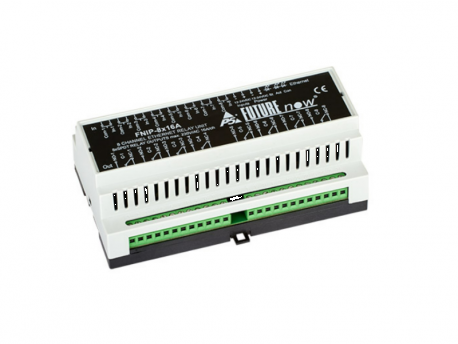

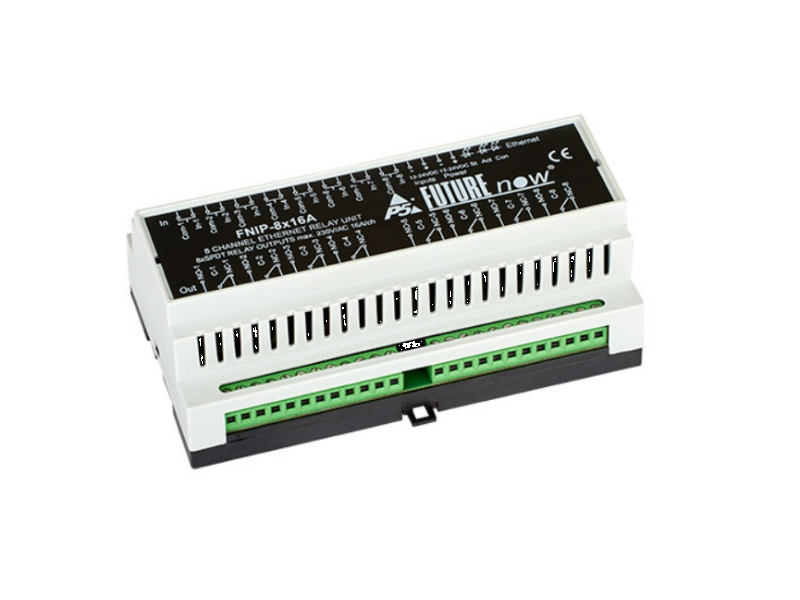

P5 FNIP-8x16A

Brend: P5
Kod proizvoda: P5 FNIP-8x16A
Dostupnost: Na lageru

Pozvati za cenu

8 Channel Ethernet Relay Switch
The FNIP-8x16A 8 Channel Ethernet Relay Switch can be used for switching any type of load that doesn't exceed the output ratings. The relays can be controlled from network-capable devices, for example smartphones and web-tablets.

Main Features

Robust Operation

All-purpose heavy-duty relay outputs for switching any type of load
8 x 230V/16A SPDT (NO and NC) dry contact outputs
8 x galvanically isolated multi-purpose digital inputs for contact sensors or manual operation

Ultimate Flexibility

On/Off, Toggle and Monostable switching
Standard DIN rail mount
Available in both 12V DC and 24V DC powered versions
Standalone operation via the local inputs, even without a controller or network connection
Digital inputs can also be used to monitor door/window contacts, motion, water leakage and any other sensor type

Enhanced Connectivity

New TCP/IP interface offers remote control and advanced management
Built-in web server for configuration, control and monitoring
Operation via the local computer network and over the Internet
Remote control and monitoring from network-enabled smartphones and tablets
Multiple users with different user rights
TCP communication with simple ASCII commands
Available communication protocol
Automatic event reporting of input and output status changes
Firmware upgrade via LAN

Industry-Wide Interoperability

Easy integration with home controllers
Interoperability with any momentary contact switches available on the market
