P5 FNIP-4x16A PoE

Brend: P5
Kod proizvoda: P5 FNIP-4x16A PoE
Dostupnost: Na lageru

Pozvati za cenu

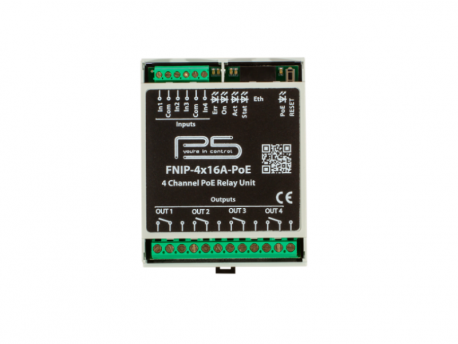

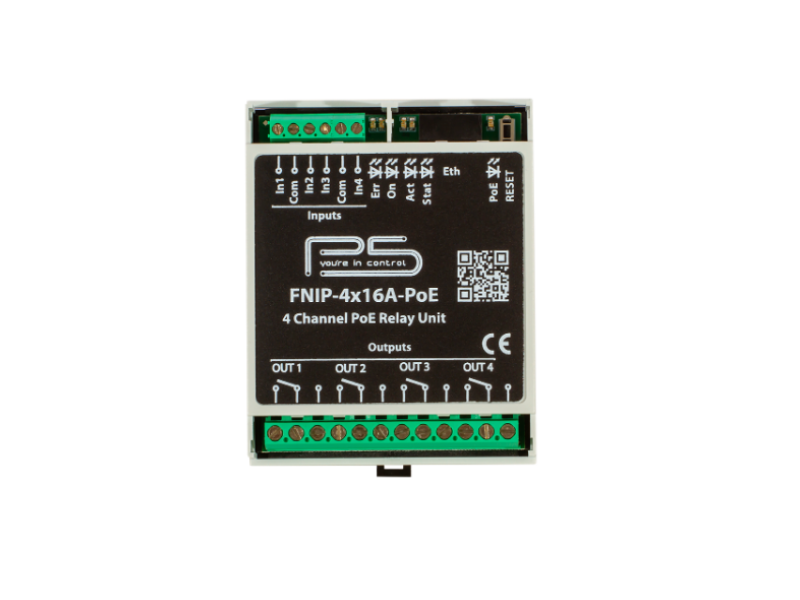

The FNIP-4x16A PoE is a 4 channel relay module used for switching a wide range of loads or circuits via its local inputs, custom TCP protocol or its built-in web server. It has a compact design and is powered over Ethernet (PoE).

Main Features

All-purpose heavy-duty relay outputs for switching any type of load
4 x 230V/16A SPST NO dry contact outputs
4 multi-purpose digital inputs for contact sensors and manual control
PoE (IEEE 802.3af) – low power consumption
Built-in web server for configuration, control and monitoring
TCP communication protocol (API) with simple ASCII commands
Multiple users with different user rights
Automatic event reporting of input and output status changes
Firmware upgrade via LAN
Scenes stored in the modules can be activated from any input on any module on the network
