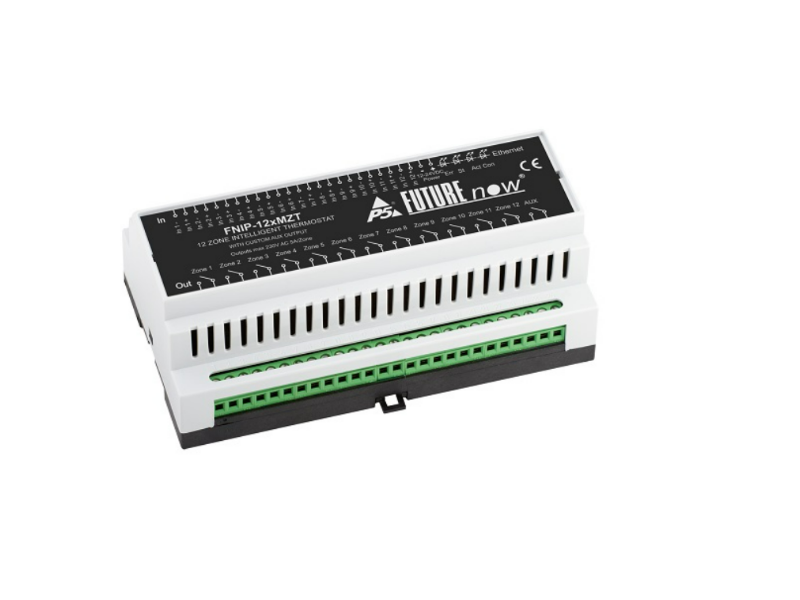

P5 FNIP-12xMZT
Multi-Zone Ethernet Thermostat
The FNIP-12xMZT is a 12 zone programmable thermostat with analog inputs and NO relay outputs. The setpoints and schedules can be adjusted via the built-in website or TCP/IP commands. The AUX relay output can be used for boiler control.
- The unit sits discretely out of sight - no more bulky boxes on the walls
- 12 inputs for most analog temp sensor types: PT1000, PTC 1K-47K, NTC 1K-47K
- 12 NO relay outputs to control valves
- 12-24V power requirement
- Heating and cooling modes
- Custom programmable extra relay - ideal for boiler control
- Standalone operation - setpoint and times stored, decision made within the module
- Setpoint adjustable via TCP/IP
- Scheduled heating and cooling programs
- Outputs and temp inputs can also be used separately
-
FNIP_12xMZT datasheet v1.0
-
FutureNow FNIP-12xMZT rev.22102024
