SECAMCCTV PARKS FortiPay XR PRO2 CR

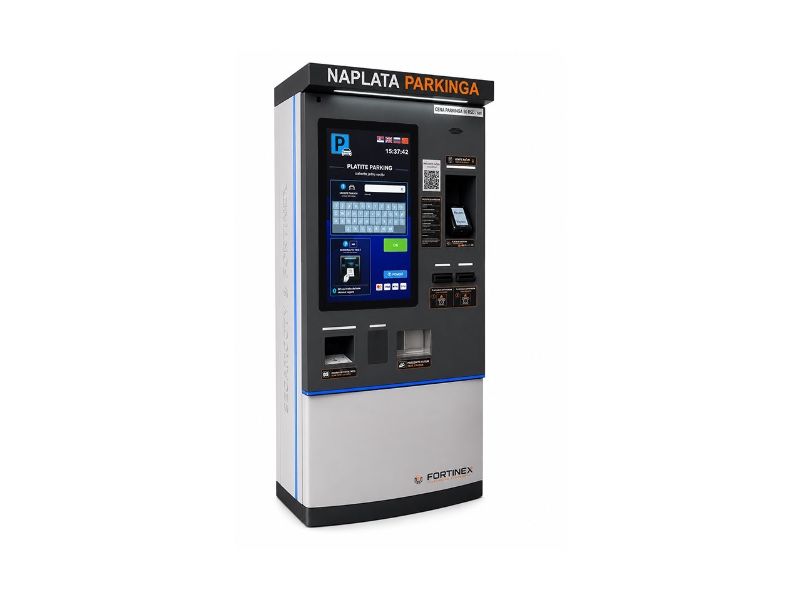

SecamCCTV PARKS FortiPay XR PRO2 CR

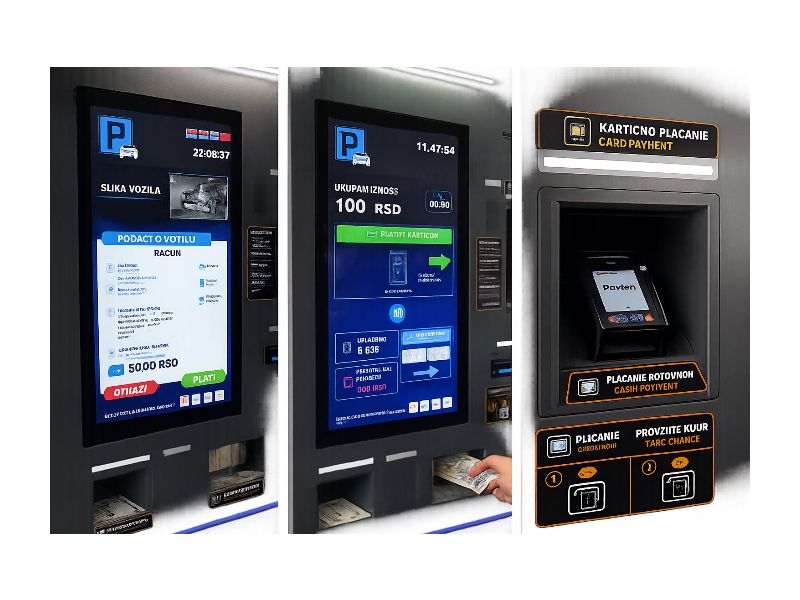

SecamCCTV PARKS FortiPay XR PRO2 CR - slika 2

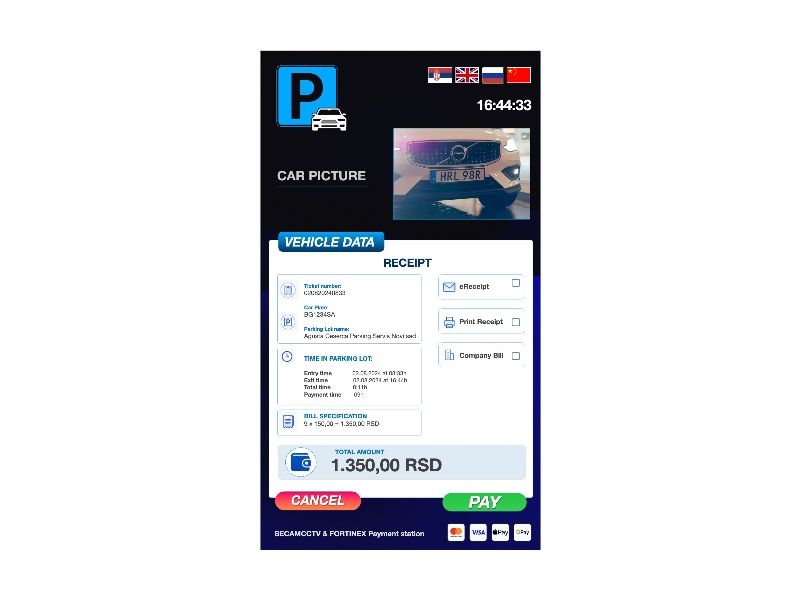

SecamCCTV PARKS FortiPay XR PRO2 CR - slika 3

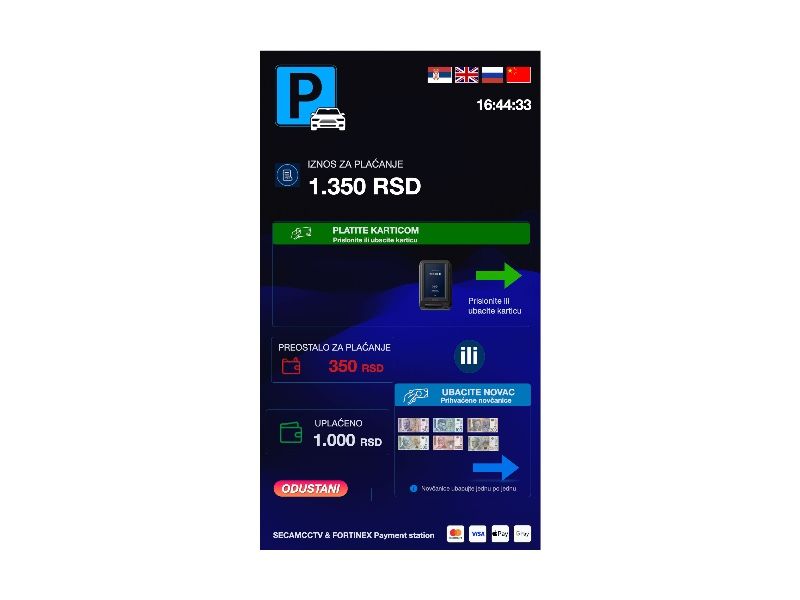

SecamCCTV PARKS FortiPay XR PRO2 CR - slika 4

Brend: SecamCCTV
Kod proizvoda: SecamCCTV PARKS FortiPay XR PRO2 CR
Dostupnost: Na lageru

Cena: 2,853,240.00 RSD
Bez PDV-a: 2,377,700.00 RSD

Stanica za naplatu parkinga predstavlja visokotehnološko rešenje koje omogućava potpuno automatizovan proces naplate parking usluga, čime se značajno smanjuje potreba za ljudskim angažovanjem i povećava efikasnost upravljanja parking prostorima.

Sistem je opremljen sa dva nezavisna akceptora novčanica, koji omogućavaju visok stepen raspoloživosti i pouzdanosti rada. U slučaju da se jedan akceptor napuni, ostane bez raspoloživog kusura ili dođe do njegovog privremenog zastoja ili kvara, sistem automatski prebacuje prijem i obradu novčanica na drugi akceptor bez prekida rada stanice. Ovakva redundantna arhitektura obezbeđuje kontinuitet rada čak i u periodima najvećeg opterećenja i značajno smanjuje potrebu za servisnim intervencijama

·       Outdoor Ready IP65
·       Placanje papirnim novcem (80/1000x2 novčanica)
·       CR (coin recycler)
·       Plaćanje platnim karticama ili mobilnim tel.
·       Glasovne poruke na vise jezika
·       Fiskalizovana
·       Verifikaciju autentičnosti novčanica
·       Vraćanje kusura svih apoena
·       Pretraga po tablicama ili tiketu Ticketless
·       QR code skener
·       17” touchscreen, , optimized for lower power consumption
·       Anti-vandal tempered glass
·       Outdoor readable (sunlight visible)
·       MIFARE/NFC/BT 13.56Mhz (opciono)
·       Štampani račun, eRačun, Gotovinski Računi

Stanica je opremljena sa dva nezavisna akceptora novčanica i CR (coin recycler) sistemom, čime se obezbeđuje maksimalna pouzdanost rada, fleksibilan prijem gotovine i kontinuitet usluge. Sistem podržava prijem papirnog novca i kovanica standardnih apoena, uz naprednu tehnologiju za prepoznavanje i verifikaciju autentičnosti novčanica.
U slučaju da se jedan akceptor napuni, ostane bez raspoloživog kusura, bude privremeno van funkcije ili dođe do kvara, sistem automatski prebacuje prijem i obradu novčanica na drugi akceptor bez prekida rada stanice. Ova redundantna arhitektura značajno povećava raspoloživost sistema i omogućava nesmetan rad čak i tokom perioda najvećeg opterećenja.

Category	Parameter	Specification
General	Model	PARKS FortiPay XR PRO2 CR
	Application	Automatic self-service parking payment terminal
	Ticketless	Hybrid / Auto / Free-Flow
	Max throughput	180 (card) / 73 (cash) transactions per hour
	Installation	Indoor / covered outdoor installation
Display (Main)	Type	17” color TFT LCD touchscreen, optimized for low power consumption
	Protection	Tempered glass, anti-vandal
Identification	RFID	13.56 MHz / RFID 125 kHz / NFC / Bluetooth (optional)
	Vehicle identification	License plate entry or selection from ANPR/LPR vehicle records
Scanner	Type	1D / 2D Automatic Barcode
	Resolution	1280 × 800 px
	Scan speed	200 scans/sec
	Frame rate	60 fps
	Detection	All major 1D/2D symbologies
	Angles	±70°, ±72°, 360°
Cash System	Type	2 × Bill Recycler/Payout + SMART Coin System for coin acceptance, recycling and automatic change return
	Banknote acceptance	5 €, 10 €, 20 €; 50 € optional
	Banknote change	5 €, 10 €; 20 € optional
	Banknote capacity	1000 / 80 notes mixed denomination × 2 pcs
	Coin acceptance	0.10 €, 0.20 €, 0.50 €, 1 €, 2 €
	Coin change	0.10 €, 0.20 €, 0.50 €, 1 €, 2 €
	Coin denominations	Up to 11 denominations
	Coin capacity	Up to 1,400 coins (€1)
	Mixed coin capacity	350 (€2) + 700 (€1) + 200 (€0.50)
	Coin payout speed	Up to 10 coins per second
	Banknote validation	Full spectral imaging
	Change	Automatic banknote and coin change
Payment Methods	Cash	Yes – banknotes and coins
	Cards	EMV Chip / Contactless
	Mobile	Apple Pay / Google Pay
	QR	Supported
	Combined payment	Cash + card payment supported
Card Terminal	Processor	Quad-Core 1.3 GHz + Secure Processor
	Memory	16 GB Flash / 2 GB RAM
	OS	Android 10
	Display	5” TFT touchscreen
	Camera	5 MP Auto Focus
	Security	TRNG, AES, RSA, DUKPT
	Certifications	PCI PTS 6.x, EMV L1/L2
Printer	Type	Thermal fiscal receipt printer
	Width	80 mm
	Speed	≤1.6 s per ticket
	Print	QR / Barcode / Text
	Paper roll holder	Ø ≥300 mm
Industrial Computer	Processor	Industrial Quad-Core CPU, ≥2.0 GHz
	RAM	32 GB
	Storage	256 GB SSD
	Network	2 × Gigabit Ethernet RJ45
	Serial interfaces	4 × RS232
	Database	MySQL
Software	Application	PARKS Payment Software
	Vehicle search	Parking session identification by entering or selecting vehicle license plate
	Central management	PARKS Control Center V3.2 WEB
	Remote monitoring	Real-time remote terminal monitoring and management
	Fiscalization	Supported
Communication	Ethernet	2 × Gigabit Ethernet 10/100/1000 RJ45
	Additional network	Integrated router/switch module with 2 × SFP 10 Gb ports
	Wi-Fi	2.4 GHz
	Bluetooth	Supported
Environmental	Operating temperature	–25 °C to +55 °C
	Humidity	≤95% RH
	Protection	IP65
Electrical	Power supply	220–230 V AC, 50 Hz
	Power consumption	Max. 90 W
	Power management	Intelligent automatic power management
	Ambient lighting	Automatic, adjustable LED lighting
	Low-temperature protection	Automatic thermostatic temperature control
Construction	Material	Stainless steel enclosure with electrostatically powder-coated finish
	Front protection	Tempered anti-vandal glass
	Color	Custom – black / grey / blue / orange
