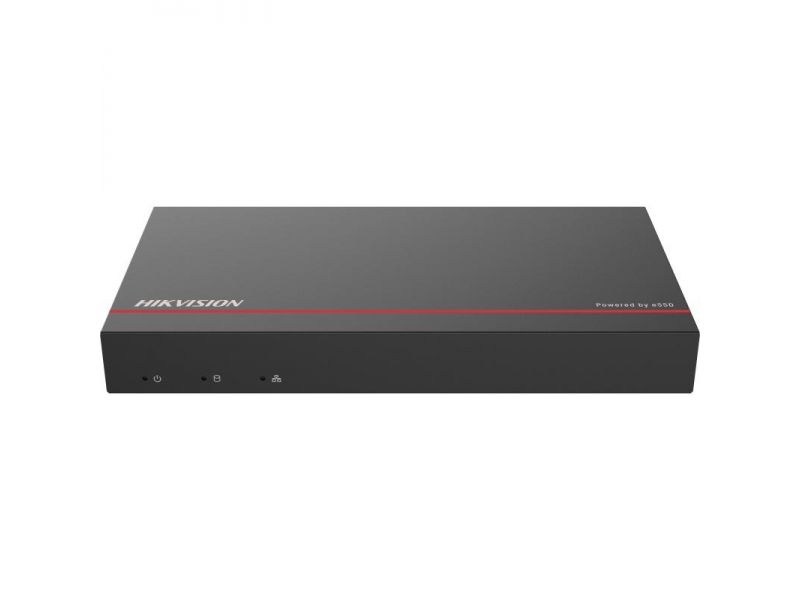

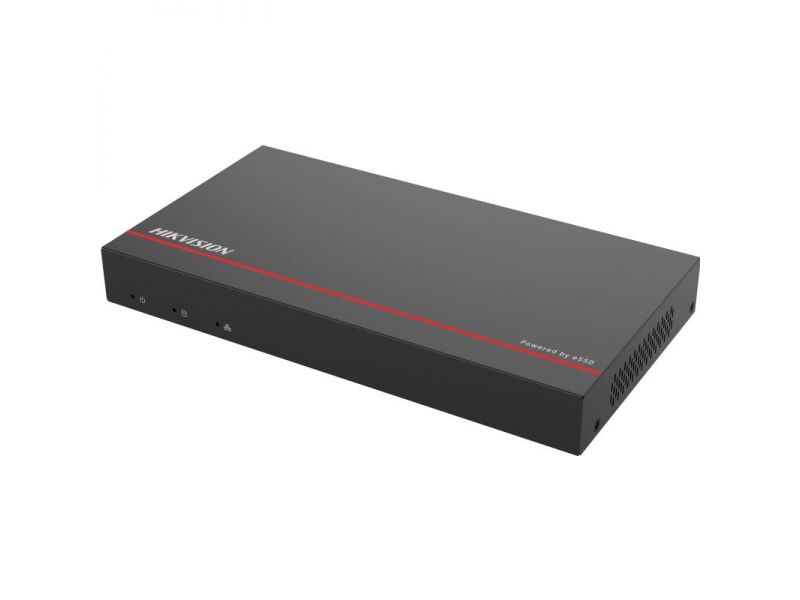

HIKVISION HIKVISION DS-E08NI-Q1/8P
Pozvati za cenu
SSD NVR
- Powered by eSSD technology
- - Low power consumption
- - H.265+/H.265/H.264+/H.264 video compression
- - to 60 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth
- - Up to 8-ch network camera inputs
- - Up to 4-ch 1080p decoding capability
- Video and Audio
- IP Video Input8-ch
- Incoming Bandwidth60 Mbps
- Outgoing Bandwidth60 Mbps
- HDMI Output1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz
- Decoding
- Decoding FormatH.265,Smart265,H.264,Smart264
- Recording Resolution4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous Playback4-ch
- Decoding Capability4-ch@1080p (25 fps)
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711ulaw/G.711alaw/G.722/G.726
- Network
- Remote Connection128-ch
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP,NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface1 RJ-45 10/100 Mbps self-adaptive Ethernet interface
- PoE
- Interface8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power≤ 58 W
- StandardIEEE 802.3 af/at
- Auxiliary Interface
- Capacity1TB SSD (pre-installed)
- USB InterfaceRear panel: 2 × USB 2.0
- General
- Power Supply48VDC，1.36A
- Consumption≤ 10 W (with SSD)
- Working Temperature-10 °C to 50 °C (14 °F to 122 °F)
- Working Humidity10 to 90 %
- Dimension (W × D × H)225 ×122 ×27 mm (8.9" × 4.8" × 1.1")
- Weight≤ 0.57 kg
- Certification
- CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
-
Datasheet-of-DS-E08NI-Q1_8P_SSD-NVR_V4.30.067_20240412
