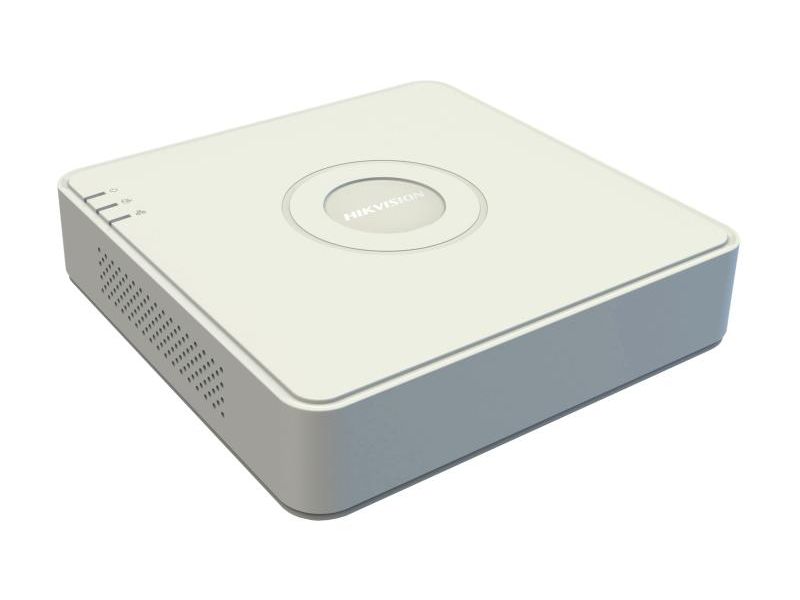

HIKVISION HIKVISION DS-7108NI-Q1
Pozvati za cenu
8-ch Mini 1U NVR
- - H.265+/H.265/H.264+/H.264 video compression
- - Up to 60 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth
- - Up to 8-ch network camera inputs
- - Up to 4-ch 1080p decoding capability
- - HDMI and VGA simultaneous output
- Video and Audio
- IP Video Input
8-ch
Up to 6 MP resolution
- Incoming Bandwidth60 Mbps
- Outgoing Bandwidth60 Mbps
- HDMI Output1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- VGA Output1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- Video Output ModeHDMI/VGA simultaneous output
- Decoding
- Decoding FormatH.265+/H.265/ H.264+/H.264
- Recording Resolution6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
- Synchronous playback4-ch
- Decoding Capability4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps)
- Stream TypeVideo, Video & Audio
- Network
- Remote Connection16
- Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™
- Network Interface1, RJ-45 10/100Mbps self-adaptive Ethernet interface
- Auxiliary Interface
- SATA1 SATA interface
- CapacityUp to 6TB capacity for each disk
- Alarm In/OutN/A
- USB InterfaceRear panel: 2 × USB 2.0
- General
- Power Supply12 VDC, 1.5 A
- Consumption≤ 10 W
- Working Temperature-10 to +55º C (+14 to +131º F)
- Working Humidity10% to 90%
- Dimension (W × D × H)200 × 200 × 48 mm (7.9" × 8.1" × 1.9")
- Weight≤ 1 kg (2.2 lb)
- Certification
- CEEN50130-4, EN 61000-3-2,EN 61000-3-3
-
Datasheet-of-DS-7108NI-Q1_Value-7-Series-NVR_V4.73.200_20230404
