HIKVISION HIKVISION DS-7608NI-L1/W
Pozvati za cenu

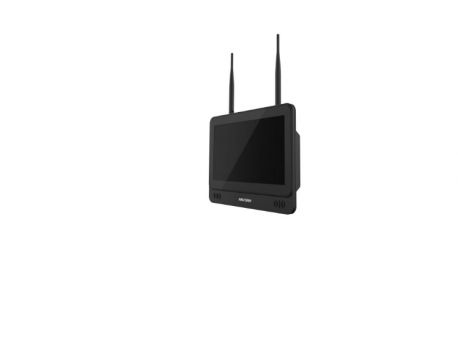

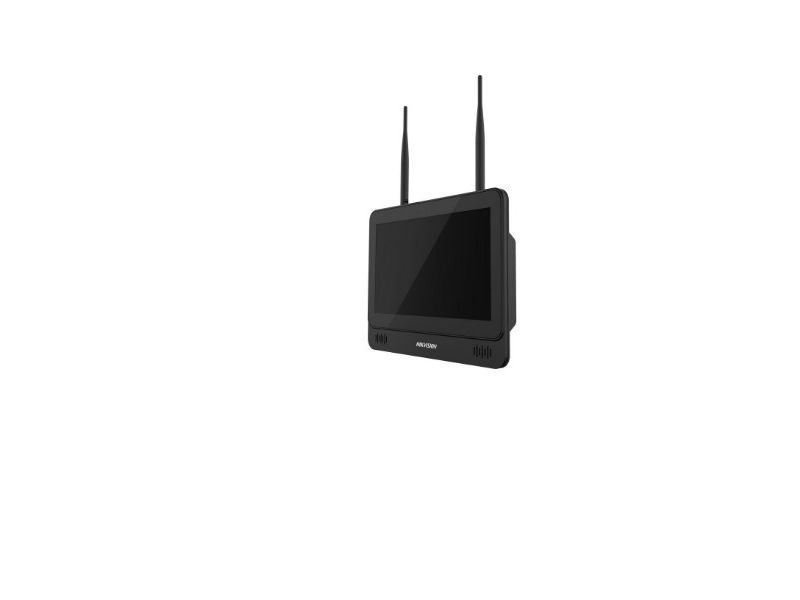

8-ch all-in-one NVR
- - 11.6-inch LCD display and HDMI output
- - Up to 4-ch@4 MP (15 fps)/4-ch@1080p (30 fps) decoding capability
- - H.265+/H.265/H.264+/H.264 video compression
- - Up to 8-ch network camera inputs, connectable with Wi-Fi cameras
- - Standing or wall-mounted installation
- Video and Audio
- IP Video Input8-ch
- HDMI Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- LCD Output11.6-inch LCD, 1366 × 768
- Incoming Bandwidth60 Mbps
- Outgoing Bandwidth60 Mbps
- Audio Output
1-ch, 3.5 mm connector
1-ch, built-in speaker
- Two-Way Audio1-ch, 3.5 mm connector
- Decoding
- Stream TypeVideo, Video & Audio
- Decoding FormatH.265+/H.265/H.264+/H.264
- Decoding Capability4-ch@4 MP (15 fps), 4-ch@1080p (30 fps)
- Synchronous playback4-ch
- Recording Resolution6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
- Network
- Remote Connection16
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Wireless Parameter
- Frequency Band2.4 GHz
- Antenna Structure2 × 2MIMO
- Transmission Speed300 Mbps
- Transmission StandardIEEE 802.11b/g/n
- Auxiliary Interface
- SATA1
- CapacityUp to 6 TB capacity
- USB Interface2 × USB 2.0
- General
- Power Supply12 VDC, 1.5 A
- Consumption≤ 10 W (without HDD)
- Working Temperature0 °C to 40 °C (32 °F to 104 °F)
- Working Humidity10 to 90 %
- Dimension (W × D × H)300 x 230 x 46.3 mm (11.8" × 9.0" × 1.8")
- Weight≤ 1 kg (without HDD, 2.2 lb.)
- Certification
- FCCPart 15 Subpart B, ANSI C63.4-2014
- CEEN50130-4, EN 61000-3-2,EN 61000-3-3
-
Datasheet-of-DS-7608NI-L1_W-NVR_V4.32.120_20220530
