HIKVISION HIKVISION DS-7104NI-K1/W/M
Pozvati za cenu

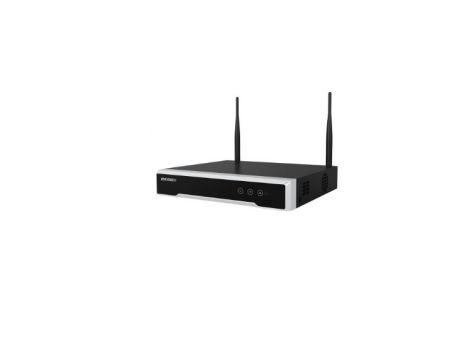

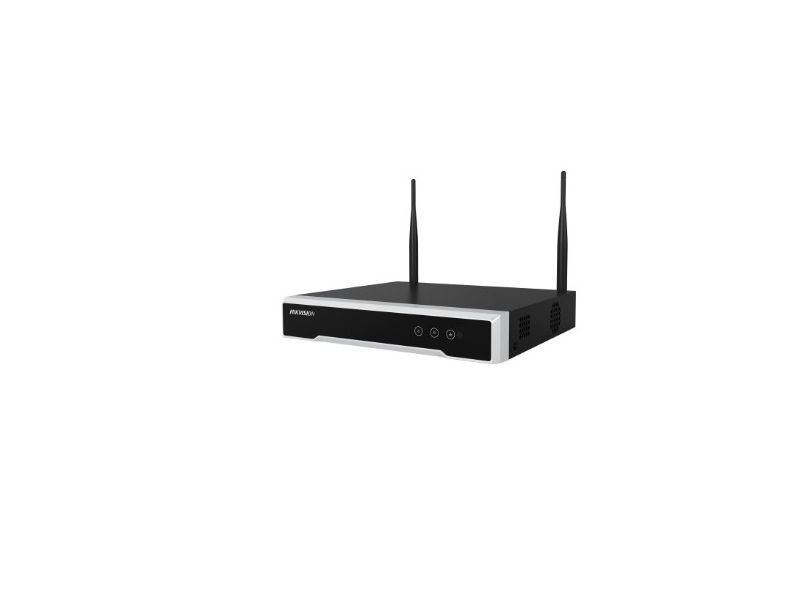

4-ch Mini 1U Wi-Fi NVR
- Up to 4 channel IP cameras can be connected
- Supports decoding H.265+/H.265/H.264+/H.264 video formats
- - Up to 4 MP high-definition live view, storage and playback
- - Up to 4-ch @ 1080p decoding capacity
- - 1 HDD for continuous video recording
- - Easy to install through automatic wireless connection
- - Easy to manage through Hik-Connect app
- Video and Audio
- IP Video Input4-ch
- HDMI Output1-ch, resolution: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA OutputHDMI,VGA
- Incoming Bandwidth50/40 Mbps
- Audio Output1-ch, RCA (linear, 1 KΩ)
- Decoding
- Decoding FormatH.265+,H.265,H.264+,H.264
- Decoding Capability4-ch@1080p / 1-ch@4 MP
- Synchronous playback4-ch
- Recording Resolution4 M/3 M/1080p/1.3 M/720p
- Network
- Network Interface1, RJ45 10/100M Ethernet interface
- PoE
- InterfaceN/A
- Wireless Parameter
- Frequency Band2.4 GHz
- Antenna Structure2 × 2MIMO
- Transmission Speed144 Mbps
- Transmission StandardIEEE 802.11b/g/n
- RAID
- RAID TypeNo
- Auxiliary Interface
- SATA1
- CapacityUp to 6 TB capacity for each disk
- USB InterfaceRear panel: 2 × USB 2.0
- General
- Power Supply12 VDC
- Consumption≤ 12 W
- Working Temperature-10 °C to +55 °C (14 °F to 131 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)260 × 246 × 48 mm (10.2" × 9.7" × 1.9")
- Weight≤ 1 kg (2.2 lb)
-
Datasheet-of_DS-7100NI-K1_W_M-NVR_3.4.102_20200327
