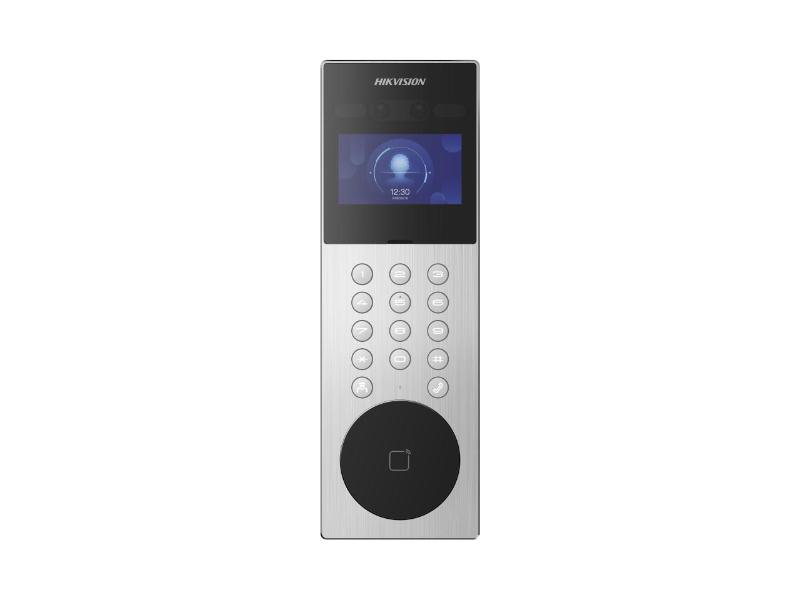

HIKVISION DS-KD9203-ME

Brend: HIKVISION
Kod proizvoda: HIKVISION DS-KD9203-ME
Dostupnost: Na lageru

Pozvati za cenu

Ekran: 4.3-inch, Colorful LCD, 800 × 480

Sistem: Linux, ROM 1 Gb, RAM 4Gb

Kamera: 2 x 2MP HD kamera, Rezolucija: Main: 1080p, 720p, Sub: VGA

Opcije slike: Digital WDR

Audio ulaz/izlaz: Integrisani omnidirekcionalni mikrofon, integrisani zvučnik, supresija buke i otklanjanje eha

Osvetljenje: IR do 3m

Mrežni interfejs: 1 10/100/1000 Mbps self-adaptive, RJ45

Mrežni protokol: TCP/IP, RSTP

Alarm ulaz/izlaz: 4/0

Čitač kartica: M1 , 13.56MHz

Kontrola brave: 1 relej Max. 30 VDC, 2 A

Exit taster: 1

Door contact input: 1

Kapacitet: Kartice: 50000, Korisnici: 10000, Lica: 5000

Viegand: 0 RS 485: 2 (Half duplex, HIKVISION)

Napajanje i potrpšnja: 12VDC 1.5A, ≤ 13 W

Radna temperatura: -30° C to +60° C

Zaštita: IP65

Dimenzije (DxŠxV): 373 mm × 124 mm × 43.7 mm

Težina: 1.23 kg

 Specification System parameters Operation system Linux ROM 1 GB RAM 4 GB Processor Embeded high performance processor Display parameters Screen size 4.3-inch Operation method / Type Colorful LCD Resolution 800 × 480 Video parameters Lens 2 MP HD camera Resolution Main stream: 1080p@30fps, 720p@30fps Sub stream: VGA@25fps, VGA@30fps FOV / Wide dynamic range (WDR) Digital WDR/120 dB Supplement light IR light, up to 3 m Video compression standard H.264 Audio parameters Audio input 1 built-in omnidirectional microphone Audio compression standard G.711 U, G.711 A Audio output 1 built-in loudspeaker Audio compression bitrate 64 Kbps Audio quality Noise suppression and echo cancellation Volume adjustment Adjustable Capacity User capacity 10,000 Face capacity 5,000 Card capacity 50,000 Network parameters Network protocol TCP/IP, RTSP Wi-Fi / Bluetooth / 3G/4G / Device interfaces Alarm input 4 Network interface 1 RJ-45 10/100/1000 Mbps self-adaptive TAMPER 1 Exit button 1 RS-485 2 RS-485 (Half duplex, HIKVISION
