2N 2N IP Base 9156111CB

Brend: 2N
Kod proizvoda: 2N 2N IP Base 9156111CB
Dostupnost: Na lageru

Pozvati za cenu

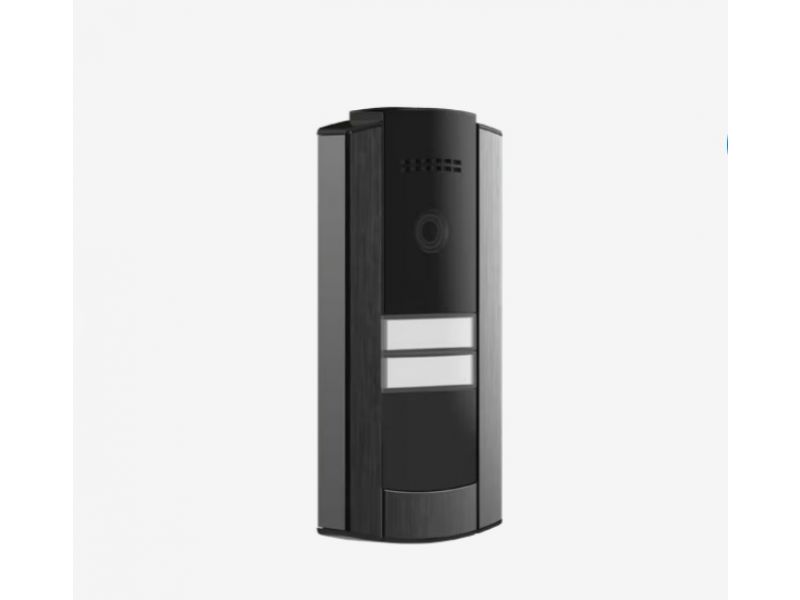

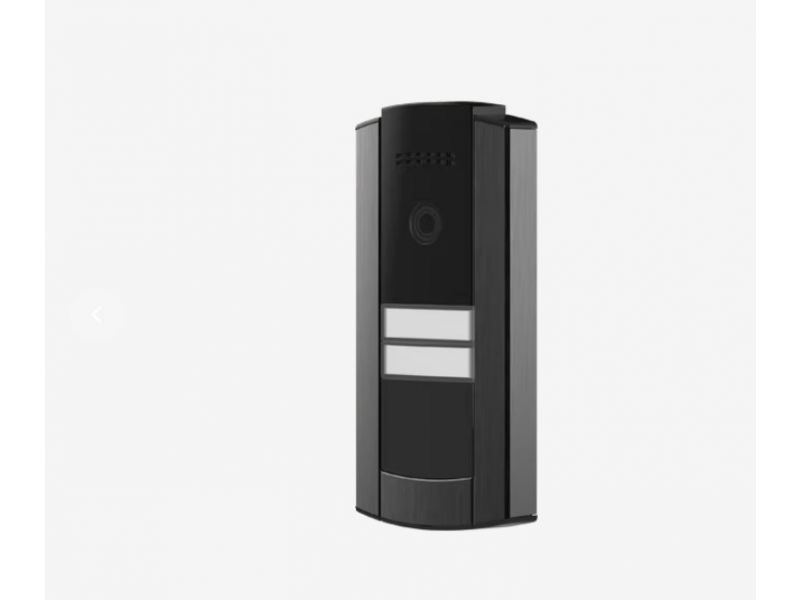

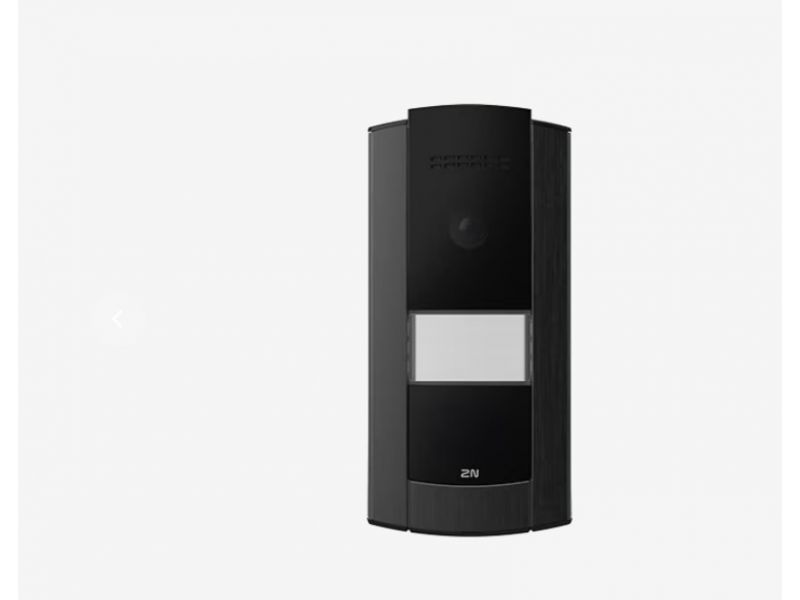

2N IP Base is a compact IP intercom with a simple and fast installation. It is fitted out with one or two buttons and brings high quality audio and video. The intercom is designed especially for smaller scale installations.2N IP Base is a compact IP intercom with a simple and fast installation. It is fitted out with one or two buttons and brings high quality audio and video. The intercom is designed especially for smaller scale installations.

Buttons

Button Type:transparent, plastic, backlit
Number Of Buttons:1 or 2 (the pack holds plastic buttons for both 1 or 2-button options)

Audio

Microphone: built-in microphone
Speaker: 2W/ 8 Ω
Sound Pressure At 1KHz At 1M Distance: 78dB

Audio Stream

Codecs: G.711, G.722, G.729

Camera

HD Camera Resolution: 1280 × 960px
Viewing Angle: 135° (H), 109° (V)
Night Vision: no

Video Stream

Codecs: H.263, H.263+, H.264 only for VoIP calls, MJPEG for http streaming

Interfaces

PoE: PoE 802.3af LAN connector
Active Switch Output: 8 to 12V, PoE: 10V - adapter: source voltage minus 2V, max 400mA
Tamper Switch: yes, inbuilt
Input For External Power Supply: 12V, 2A, DC
Supported Protocols: SIP2.0, DHCP opt. 66, ONVIF, SMTP, 802.1x, RTSP, RTP, TFTP, HTTP, HTTPS, Syslog
Inputs: 1 input - in passive/active mode (-30 V to +30 V DC), OFF = open or Uin> 1.5V / ON = short-circuit or Uin< 1.5V

Mechanical Properties

Weight: 1kg
Operating Temperature: -40 to 55°C
Storage Temperature: -40 to 70°C
Operating Relative Humidity: 10%-95% (non-condensing)
Cover Rating: IP65, IK07
Dimensions: 229 × 109 × 31mm

RFID Card Reader

Supported Bands: 13.56MHz, 125kHz

Other

Signalling protocol: SIP 2.0 (RFC - 3261)
