2N 2N IP One

Brend: 2N
Kod proizvoda: 2N 2N IP One
Dostupnost: Na lageru

Pozvati za cenu

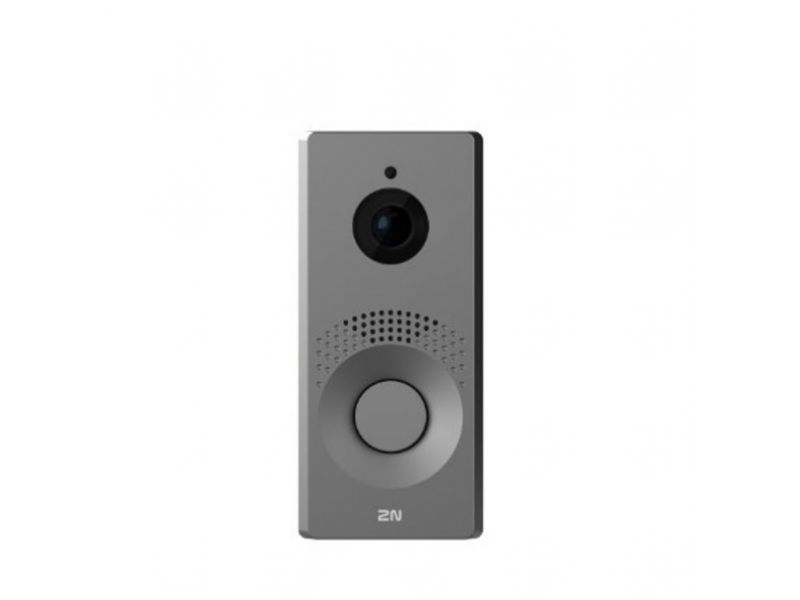

2N IP One is a highly durable IP video intercom designed to protect family homes. Powered by the Axis ARTPEC-7 processor and featuring a Full HD, wide-angle camera (plus Adaptative Face Zooming) it offers constant, clear control of the front door. Connect it to a 2N indoor station, the My2N app, and leading home automation systems to enhance the resident experience. Residents can also use the My2N app to open their doors effortlessly themselves!

Power Supply

Type: PoE and/or 12 V/1 A DC
PoE: 802.3af (12.95 W max.)

Interfaces

LAN: 10/100BASE-TX with Auto-MDIX, RJ-45 jack
Recommended Cabling: Cat-5e or better
Active Switch Output: 12 V DC/max 600 mA
Passive Switch: NO contacts, 20V AC or 30V DC, 1A
Inputs: 1 input - in passive/active mode (-30 V to +30 V DC) OFF = open or Uin> 1.5 V ON = short-circuit or Uin< 1.5 V
Tamper Switch: yes

Audio

Microphone: 1 integrated microphone
Amplifier: 5 W RMS (Class D)
Speaker: integrated, 3W
Line Out: N/A
Volume Control: adjustable with automatic adaptive mode
Full Duplex: Yes (AEC)
Audio Output: W3
Protocols: RTP/RTSP/SRTP
Codecs: G.711, G.729, G.722, L16/16kHz
Camera & Video

Sensor: 1/2.7″ colour CMOS
Focal Lenght: mm1.93
View Angle: 156° (H), 116° (V)
Infrared Light: yes
WDR: yes
Minimal Illumination: 0,3 lux without IR illumination
Protocols: RTP/RTSP/RTCP/HTTP, ONVIF v2.4 profile S
Codecs: H.264, MJPEG, Axis Zipstream
Resolution H.264, MJPEG: max. 1920 x 1440 (4:3)
Frame Rate: 30fps

Dimensions

Device: 78 (W) x 172 (H) x 53 (D) mm
Device (above the wall): 78 (W) x 172 (H) x 10 (D) mm
Flush Mounting Frame: 67 (W) x 167 (H) x 56 (D) mm

Mechanical Properties

Frame (Cover): aluminium casting (three colors)
Button: 1
Processor: Axis ARTPEC-7
Operating Temperature: -40°C to +60°C
Storage Temperature: -40°C to +70°C
Operating Relative Humidity: 10%-95% (non-condensing)
Cover Rating: IP66 and IK08
Weight: 355g

Warranty

5-years warranty:See Warranty and repairs page for more information
