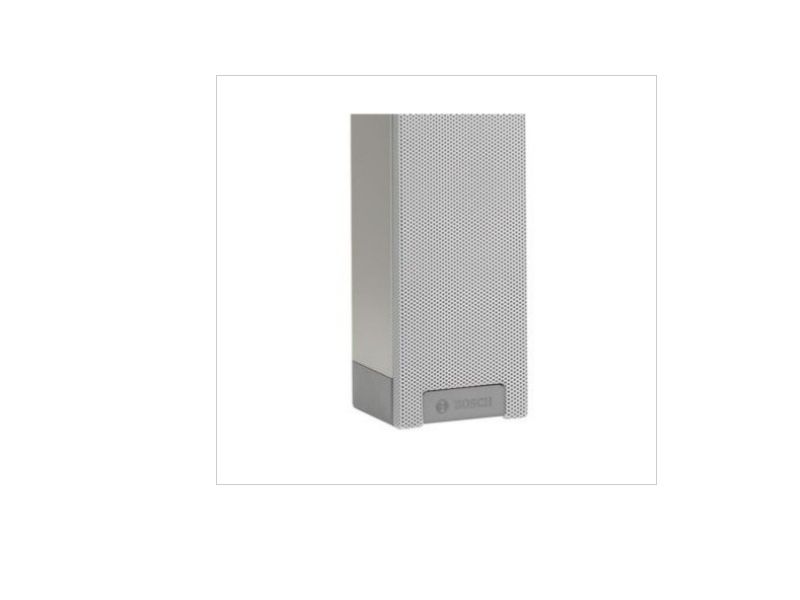

Bosch Line array loudspeaker, 60W
This loudspeaker, with its excellent directivity and high power output, can handle medium and large (reverberant) indoor environments, especially the more acoustically challenging ones. It is typically used in congress venues, meeting halls and places of worship. The full frequency range of the LBC 3201/00 makes it ideal for speech as well as music reproduction. Its exceptionally narrow housing (only 8 cm wide) makes it extremely unobtrusive.
- - Extended listening area
- - Excellent intelligibility of speech and music
- - Uniform distribution of natural sound throughout the room
- - Excellent directivity for use in acoustically difficult, reverberant applications
- - EN 54‑24 certified
| Color | Gray; Customized colors |
| Coverage angle HxV (-6 dB, 1 kHz) (°) | 158 x 158 ° |
| Coverage angle HxV (-6 dB, 4 kHz) (°) | 58 x 58 ° |
| Dimensions (H x W x D) (mm) | 1200 x 80 x 90 mm |
| Frequency range (-10 dB) (Hz) | 190 – 18000 Hz |
| Material | Aluminum |
| Operating temperature (°C) | -25 – 55 °C |
| Rated input voltage (V) | 70 V; 100 V |
| Rated power (W) | 12 W |
| Sensitivity (1 W, 1 m, 1 kHz octave) (dB) | 93 dB |
| Storage temperature (°C) | -40 – 70 °C |
| Weight (kg) | 6.4 kg |
-
LBC_3200_00_Installation_Manual_all_1913097099 (1)
-
Certificate_PL_CNBOP_plPL_1913652747 (1)
-
CCP_LBC32xx_00_Certificate_EU_CPR_all_27021605979720459 (1)
-
DoP_Certificate_EU_DoP_all_9007216838437771 (1)
-
Certificate_GB_UKCA_enUS_96090918027
