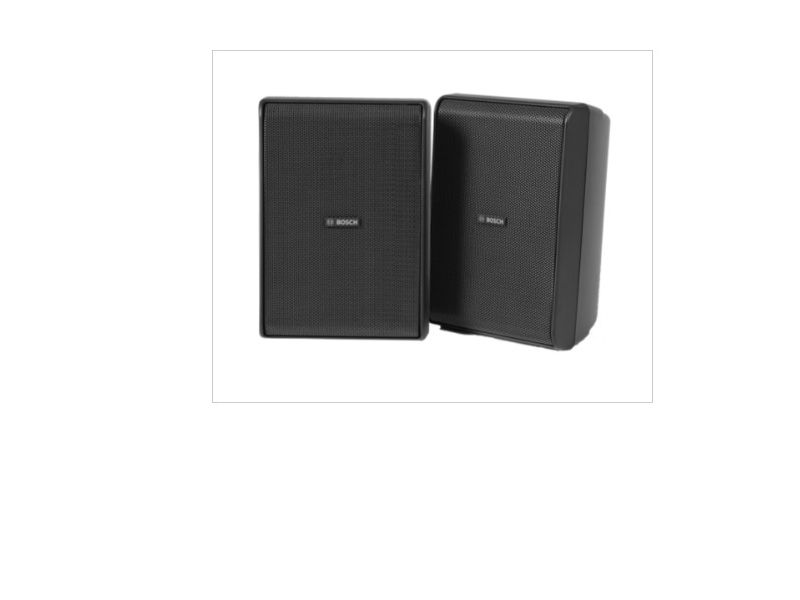

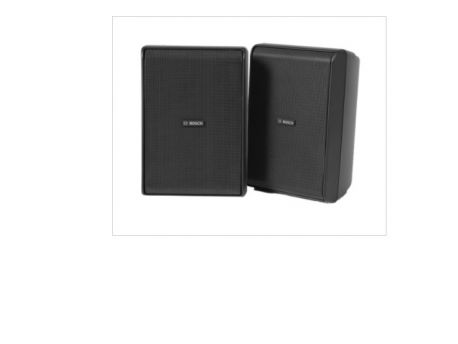

Bosch Cabinet speaker 5'' 70/100V IP65 bk pair

Brend: Bosch
Kod proizvoda: Bosch Cabinet speaker 5'' 70/100V IP65 bk pair
Dostupnost: Na lageru

Pozvati za cenu

 The LB20-PC60EW-5, from Bosch, is a high performance, two-way, full-range, 5.25" (133 mm) surface mount speaker with excellent wide, uniform dispersion, and outstanding performance.
It is designed for background and foreground music, voice evacuation, paging, and sound reinforcement, and it's ideal for a wide variety of indoor and outdoor applications, such as restaurants, bars, patios, retail, fitness clubs, hospitality, theme parks, leisure venues, and others.
With unparalleled ease-of-installation, exceptional weather resistance, modern and delicate look, EVAC certification, and its flexible mounting options, the LB20-PC60EW-5 is the perfect solution for a wide variety of surface mount applications. The LB20-PC60EW-5 has been carefully engineered to resist the toughest weather conditions, without compromising on performance for indoor applications.
The full-range speaker is IP65 rated, and its weather proofing is complemented with exceptional cabinet and grille resistance against sun, salt, and moisture. The LB20-PC60EW-5 includes a versatile U-Bracket that has been designed with the installer in mind, allowing for a wide range of installation applications.
The U-Bracket allows for 80 degrees of rotation. The LB20-PC60EW-5 utilizes a 60 W transformer, that offers a selection of 8 W (70 V only), 15 W, 30 W or 60 W delivered to the speaker system using either 70 V or 100 V lines, or 8 Ω bypass for low impedance lines.
Selection is done with a convenient switch on the input panel located on the rear of the speaker. The wide range of LB20 surface mount speakers has been designed to work together as a complete system in a variety of different surface mount constructions, and to be used in combination with other LB20 ceiling and in-wall speakers.
  • - Carefully engineered for the toughest weather conditions (IP65)
  • - Long throw 5.25" (133 mm) woofer housed in a UL 94-5VB fire rated ABS plastic for extended LF performance      down to 55 Hz
  • - 75 W power handling provides for 108 dB maximum SPL (114 dB Peak)
  • - 60 W transformer with 8 Ω pass-through
  • - EN 54-24 and UL1480
Color Black
Dimensions (H x W x D) (mm) 255 x 180 x 150 mm
Frequency range (-10 dB) (Hz) 55 – 20000 Hz
IP rating IP65
Sensitivity (1 W, 1 m, 1 kHz octave) (dB) 89 dB
Weight (kg) 3.20 kg

  • LB20_PC60EW_5_Cabine_Data_sheet_enUS_33817915787

    LB20_PC60EW_5_Cabine_Data_sheet_enUS_33817915787

  • LB20_EVAC_Cabinet_Lo_Installation_Manual_enUS_34695868299

    LB20_EVAC_Cabinet_Lo_Installation_Manual_enUS_34695868299

  • LB20_Commercial_Broc_Commercial_Brochure_enUS_33818002699 (2)

    LB20_Commercial_Broc_Commercial_Brochure_enUS_33818002699 (2)

  • DECL_IP_LB20_PC60EW__Certificate_GL_IP Rating_enUS_41795890059

    DECL_IP_LB20_PC60EW__Certificate_GL_IP Rating_enUS_41795890059
