SECAMCCTV PARKS Gate Controller BOX

SecamCCTV PARKS Gate Controller BOX

Brend: SecamCCTV
Kod proizvoda: SecamCCTV PARKS Gate Controller BOX
Dostupnost: Na lageru

Cena: 280,368.00 RSD
Bez PDV-a: 233,640.00 RSD

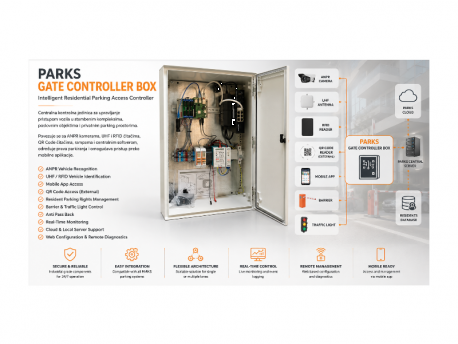

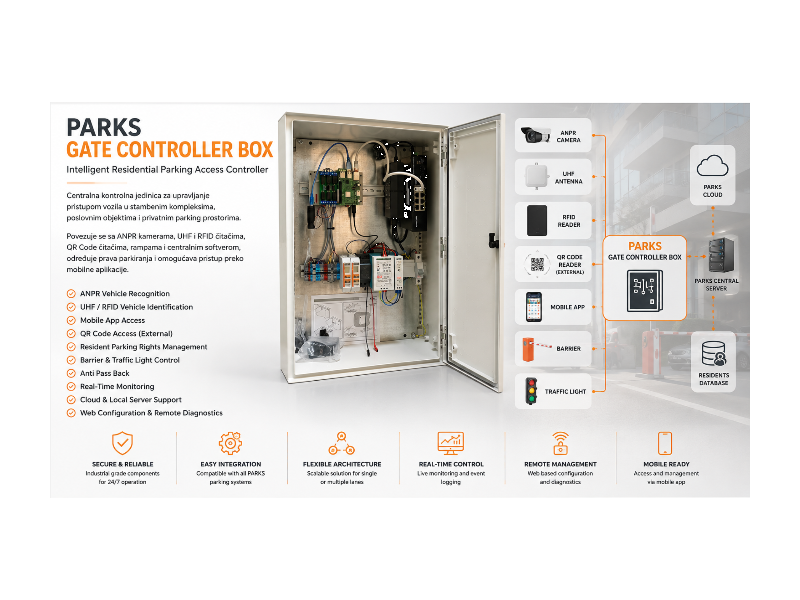

Model PARKS Gate Controller BOX – Intelligent Parking Lane Controller predstavlja centralnu kontrolnu jedinicu namenjenu upravljanju pristupom vozila na parking prostorima, stambenim kompleksima, poslovnim objektima i privatnim garažama. Uređaj omogućava povezivanje i upravljanje ANPR kamerama, UHF antenama, RFID čitačima, QR Code čitačima, rampama, semaforima i drugim uređajima parking infrastrukture.
Sistem komunicira sa centralnim PARKS softverom u realnom vremenu, upravlja pravima pristupa korisnika, kontroliše ulaske i izlaske vozila, podržava mobilnu aplikaciju za korisnike i omogućava jednostavnu integraciju sa postojećim parking sistemima.
Elektronika sistema smeštena je u robusno IP66 industrijsko poliestersko kućište, namenjeno za unutrašnju i spoljašnju montažu. Kućište obezbeđuje visok stepen zaštite od prašine, vode, UV zračenja, korozije i drugih spoljašnjih uticaja, omogućavajući pouzdan rad sistema u svim vremenskim uslovima.

MODEL	PARKS Gate Controller BOX
OPTION
ID Card	RFID 125khz or UHF/MIFARE/NFC/BT 13.56Mhz (extra charge)
Anti Pass Back	YES
Outputs	2 relay 5A for Duble Barrier Interlock system + 2 realay 5A for LED traffic light in the gate arm, LED traffic light in the top part of the gate
Inputs	4 Digital input for inductive loop
USB	1xYES
LPR ANPR Cameara	YES x2
Display	LCD 15"
Max handling speed per h.	Hibridni režim rada 280 Automatski režim rada 480 Brzi prolaz – Free Flow režim 710
Interlocking	Control Duble Barrier Interlock system
1D/2D Scanner Automatic Barcode
Image size	1280 x 800 pixels Horizontal: 45°, Vertical: 28°
Reflective difference	± 70°, ± 72°, 360° (Skew, Pitch, Roll) 60 frames/sec
Auto-detection	All major 1D and 2D symbologies Beeper
Decoding rate	200 scans/sec
High density	3 mil Code 39 (3 chars): 55 - 83mm (HD) 4 mil Code 128 (9 chars): 45 - 142 mm (HD) 90 - 160mm (SR) 13 mil UPC (6 chars): 40 - 380mm (HD), 40 - 550mm (SR) 5 mil QR (40 chars): 48 - 100mm (HD) 6.7 mil PDF417 (20 chars): 30 - 160mm (HD), 70 - 160mm (SR) 10 mil QR (20 chars): 17 - 200mm (HD), 25 - 190mm (SR) 20 mil QR (20 chars): 20 - 320mm (HD),
Humidity	5% to 95% (non-condensing)
VoiP Audio
Audio communication Intercom	Standard SIP-VoiP Audio Intercom two way communication VoIP transmission via TCP/IP: no additional wiring required
Voip Control	Open barrier over SIP-VoiP command DTMF recognition
System
Database type	Online - MYSQL server Linux/ >Windows 2008
Operating system	Linux
SoC	Broadcom BCM2837
CPU	4× ARM Cortex-A53, 1.2GH
GPU	Broadcom VideoCore IV
RAM	1GB LPDDR2 (900 MHz)
Storage	microSD up to 128GB
Communication
Networking	10/100 Ethernet RJ45
Bluetooth	Bluetooth 4.1 Classic, Bluetooth Low Energy
WiFi	2.4GHz 802.11n wireless
Environmental
Working temperature	-30 ℃ to +70 ℃
Working environment	indoor, outdoor
Relative humidity	≤95% coagulation free
Ingress Protection	IP54
Electrical
Supply power	220V 50Hz ±5%
Battery	12V 7Ah
Power Consumption	210W +Heater 80W (<-5C)
Construction
Net Weight	74.8kg
Housing Size	1400446320mm
Housing color	Silver / Gray / Blue/ Orange/any
Housing material	Hot-dip galvanized steel with powder-coated finish, tempered glass
