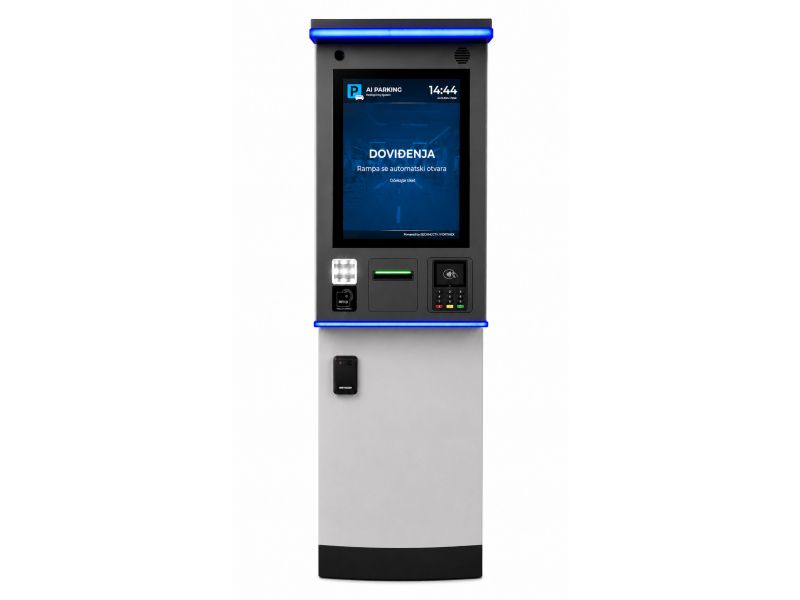

SECAMCCTV PARKS EXIT100PR

SecamCCTV PARKS EXIT100PR

Brend: SecamCCTV
Kod proizvoda: SecamCCTV PARKS EXIT100PR
Dostupnost: Na lageru

Cena: 843,228.00 RSD
Bez PDV-a: 702,690.00 RSD

·     Direktna naplata parkinga platnim karticama na izlazu (VISA, Mastercard i dr.)
·     Podrška za beskontaktno NFC i mobilno plaćanje
·     Integrisani POS terminal za kartično plaćanje
·     POS komunikacija putem RS232C i LAN Ethernet 10/100 Mb
·     Podrška za TCP/IP i UDP komunikacione protokole
·     17" LCD displej prilagođen za rad na otvorenom
·     Integrisani 1D/2D QR/barcode čitač za očitavanje i validaciju parking tiketa
·     Podrška za povezivanje do 2 ANPR/LPR kamere
·     RFID čitač 13,56 MHz, opciono UHF / NFC / Bluetooth
·     Integrisani SIP/VoIP HD video interfon za direktnu komunikaciju sa OKC
·     Full-duplex HD audio/video komunikacija sa operaterom
·     Integrisani vodootporni zvučnik snage  3W sa regulacijom jačine zvuka
·     Integrisani mikrofon za dvosmernu komunikaciju
·     Vodootporno pozivno dugme za direktan poziv Operativno-kontrolnog centra (OKC)
·     Automatsko javljanje i automatski prekid VoIP veze
·     Programabilni vremenski relej za upravljanje izlaznom rampom
·     Daljinsko upravljanje rampom iz OKC putem SIP/VoIP komande
·     Podrška za induktivne petlje i bezbednosne senzore
·     Interlocking funkcija za kontrolu sistema sa dve rampe
·     Integracija sa centralnim PARKS parking sistemom putem TCP/IP mreže
·     Metalno samostojeće kućište za montažu na parking ostrvo
·     Kućište sa stepenom zaštite IP65
·     Integrisani moduli napajanja i komunikaciona oprema
·     Podrška za ticketless, hibridni i automatski režim rada
·     AI/ML funkcije za detekciju vozila, kontrolu prolaska i naprednu analizu saobraćaja

Category	Parameter	Specification
General	Model	PARKS EXIT 100PR
	Type	Pay-on-Exit Parking Terminal
	Operating Modes	Ticketless / Hybrid / Automatic / Free-Flow
	Installation	Freestanding, parking island installation
	Housing	Hot-dip galvanized steel with powder-coated finish, tempered glass
	Ingress Protection	IP65
	Dimensions	1400 × 446 × 320 mm
	Operating Temperature	–20 °C to +55 °C
	Relative Humidity	≤95%, non-condensing
Control System	Controller	Industrial embedded control platform
	Processor	Quad-Core processor
	Memory	4 GB RAM
	Storage	Up to 128 GB
	Operating System	Embedded Linux
	Network	Gigabit Ethernet RJ45
	I/O System	Integrated industrial digital I/O control
	Digital Inputs	6 × digital inputs for inductive loops, safety sensors and external signals
	Relay Outputs	6 × programmable relay outputs
	Barrier Control	Programmable time-adjustable relay control
	Interlocking	Double-barrier interlocking control
	Auxiliary Control	Traffic lights / barrier LED / external equipment control
Display	Type	17" LCD Touchscreen Display
	Indoor / Garage Version	500 nits, for indoor and garage installations
	Outdoor Version	1200–1500 nits, high-brightness sunlight-readable display
	Sunlight Readability	Outdoor version optimized for operation in high ambient light and direct sunlight
	Function	User instructions, payment information and parking status
Payment System	Payment Mode	Direct Pay-on-Exit
	Bank Cards	VISA, Mastercard and supported payment cards
	Contactless Payment	NFC / Contactless
	Mobile Payment	Supported
	POS Terminal	Integrated unattended payment terminal
	POS Interfaces	RS232C + Ethernet 10/100 Mb
	Network Protocols	TCP/IP & UDP
	Fiscalization	Integration with local fiscalization system according to applicable regulations
Intercom / OKC	Intercom	Integrated SIP/VoIP HD Video Intercom
	Communication	Full-duplex HD audio and video communication with OKC
	Video	HD video transmission
	Speaker	Waterproof speaker, ≥3 W, adjustable volume
	Microphone	Integrated microphone
	Call Button	Waterproof direct-call push button
	Call Management	Automatic answer / automatic call termination
	Protocol	SIP/VoIP over TCP/IP
	Remote Barrier Control	Supported from OKC
Identification	ANPR/LPR	Support for up to 2 × ANPR/LPR cameras
	RFID	13.56 MHz
	Optional Identification	UHF / MIFARE / NFC / Bluetooth
	Anti-Passback	Supported
QR / Barcode Scanner	Scanner	Automatic 1D / 2D / QR barcode scanner
	Image Resolution	1280 × 800 px
	Frame Rate	60 fps
	Decoding Rate	Up to 200 scans/sec
	Auto Detection	All major 1D and 2D symbologies
	Reading Angles	±70°, ±72°, 360° (Skew / Pitch / Roll)
Performance	Hybrid Mode	Up to 280 vehicles/hour
	Automatic Mode	Up to 480 vehicles/hour
	Free-Flow Mode	Up to 710 vehicles/hour
Software & Integration	Central Management	PARKS Control Center
	Server Communication	TCP/IP
	Database	Central online database
	Monitoring	Real-time device, transaction and event monitoring
	Remote Management	Supported
	API Integration	Supported
Electrical	Power Supply	220–230 V AC / 50 Hz
	Backup Power	Optional
	Low-Temperature Heating	Automatic thermostatically controlled heating
System Integration	Barrier	Direct control of exit barrier
	Vehicle Detection	Inductive loop / safety sensor support
	Traffic Signals	LED traffic light / barrier LED control
	OKC Integration	Remote monitoring, communication and barrier control
