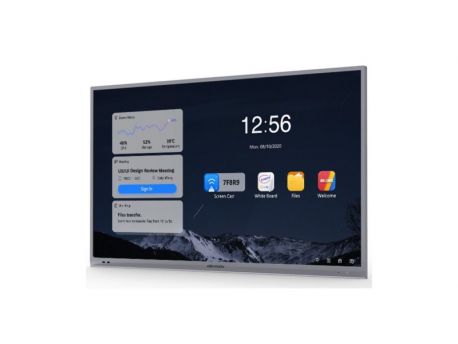

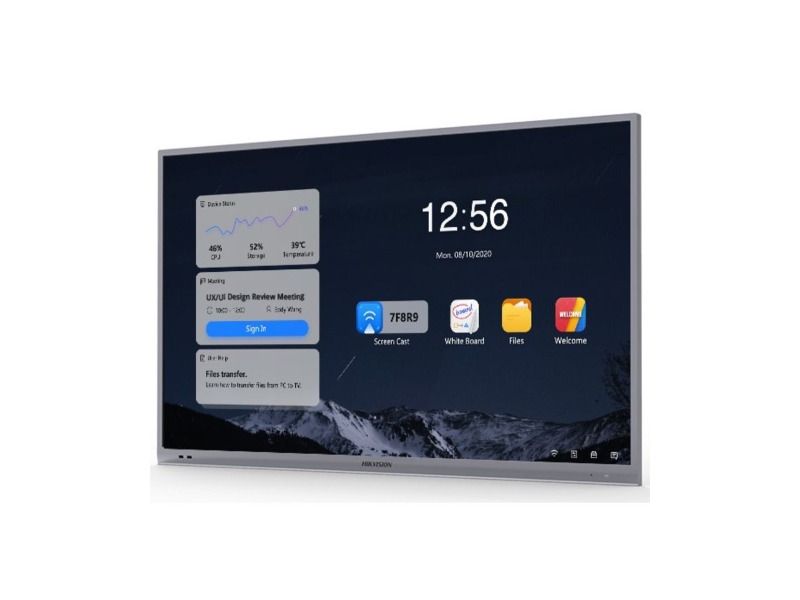

Interaktivni 4K panel sa ekranom osetljivim na dodir integriše funkcije kompjutera, projektora, interaktivne table, reklamnih panela i drugih uredjaja. Najčešće se koristi sa video sastanke, treninge i predavanja, reklame.
Dijagonala ekrana: 86”
Rezolucija: 3840 × 2160@60 Hz
Pozadinsko osvetljenje: D-LED Backlight
Osvetljenje: 350 cd/m²
Kontrast: 1200:1
Odziv: 6ms
Operativni sistem: Android 11
Integrisana memorija: 64 GB
WiFi: IEEE 802.11 a/b/g/n/ac with 2 × 2 MIMO, podržava 2.4 GHz i 5GHz
Zvučnici: Integrisani 2 x 16 W zvučnici
Bluetooth: Integrisan BLE modul podržava Bluetooth 5.0 i prethodni
Interfejsi: HDMI IN × 2, MAX 4K @30 Hz, LINE IN × 1, HDMI OUT (HDMI 2.0) × 1, MAX 4K @60 Hz, LINE OUT × 1, RS-232 × 1, Touch-USB × 1, RJ45 (1000 Mbps port) × 2, USB-C × 1, USB-A × 2 na prednjoj strani i USB-A × 2 na poledjini
Napajanje i potrošnja: 100 to 240 V, AC, 50/60 Hz, ≤490W (standby ≤0.5W)
Radna temperatura i vlažnost: 0°C do 40°C, 10% to 90%
Dimenzije: 1963 × 1159 × 87.5 mm
Težina: 65.12 kg
Radni vek: 50000h
Product Model Product Model DS-D5B86RB/C Display Screen Size 86 inch LED Backlight Backlight DLED Pixel Pitch 0.164 (H) × 0.493 (V) mm Resolution 3840 × 2160@60 Hz Brightness 350 cd/m² Color Depth 10 bit Contrast Ratio 1200 : 1 (Typ.) Response Time 6 ms Color Gamut 90% NTSC (CIE1931) (Typ.) Refresh Rate 60 Hz Viewing Angle 178° (H) / 178° (V) Built-in System Operation System Android 11 Processor A72*2 + A53*4, 1.8 GHz Memory 4 GB Built-in Storage 64 GB NIC Built-in 1000 Mbps NIC, supporting routing; IEEE 802.11 a/b/g/n/ac with 2 × 2 MIMO, supporting both 2.4 GHz and 5GHz bands Touch Type Infrared touch screen Glass AG smooth glass Touch Point Max 45 point multi-touch Touch Response Time ＜ 10 ms Touch Precision ± 1 mm (≥ 90% touching area) Internal Function Loudspeaker Built-in 2 × 16 W loudspeaker Bluetooth Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.0 and previous version Interface Video ＆ Audio Input HDMI IN（HDMI 2.0）× 2, MAX 4K @30 Hz, LINE IN × 1 Video ＆ audio output HDMI OUT（HDMI 2.0） × 1, MAX 4K @60 Hz, LINE OUT × 1 Control interface RS-232 × 1, Touch-USB × 1 Network Interface RJ45 (1000 Mbps port) × 2 Data Transmission Interface USB-C × 1, USB-A × 2 on front panel, USB-A × 2 on rear panel Power Power Consumption ≤ 490 W (full load) Standby Consumption 0.5 W Working Environment Working Temperature 0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
-
