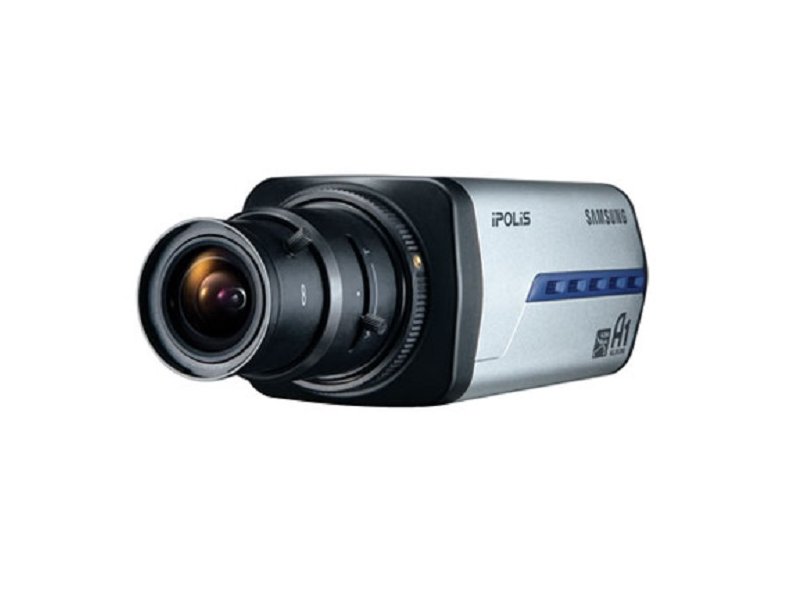

Samsung SNB-2000

Brend: Samsung
Kod proizvoda: Samsung SNB-2000
Dostupnost: Na lageru
H264
MPEG4
Cena: 4,284.00 RSD
Bez PDV-a: 3,570.00 RSD
4CIF dan/noć mrežna kamera, 1/3'' Super HAD PS CCD čip
H264/MPEG4/JPEG, 25fps, extended dynamic range XDR, digitalni zum, sens-up do 512x, kompenzacija pozadinskog svetla, white balance, kompozitni video izlaz 600TVL, 12VDC / 24VAC / PoE
Network
  • Ethernet : RJ-45 (10/100BASE-T)
  • Video Compression Format : H.264, MPEG-4, MJPEG
  • Resolution : 704 x 480, 640 x 480, 352 x 240
  • Max Framerate : 30fps
  • Video Quality Adjustment H-264 MPEG : H.264, MPEG-4 : Compression level, Target bitrate level control
  • Video Quality Adjustment MJPEG : MJPEG : Quality level control
  • Bitrate Control Method : H.264, MPEG-4 : CBR or VBR, MJPEG : VBR
  • Steaming Capacity : Dual streaming (MPEG-4 + MJPEG or H.264 +MJPEG)
  • Audio I-O : Mic /Line in, Line out
  • Audio Compression Format : G.744 u-law
  • Audio Communication : Bi-directional audio
  • IP : 1
  • Protocol : TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2)ARP,DNS, DDNS,ONVIP
  • Security : HTTPS(SSL) login authentication, Digest login authentication IP address filtering , User access log
  • Streaming Method : Unicast/ Multicast
  • Max User Access : 10 users at unicast mode
  • Memory Slot : SD/SDHC memory slot
  • ONVIF Conformance : Yes
  • Webpage Language : English, French, German, Spanish, Italian, Chinese, Korean
  • Web Viewer Os : Supported OS: Windows XP/VISTA /7
  • Web Viewer Brower : Supported Browser : Internet Explorer 6.0 or Higher
  • Central Management Software : NET-i-ware

Operational

  • OnS creen Display : English, French, Spanish, Portuguese, Japanese
  • Camera Title : Off / On (Displayed up to 54 characters)
  • Day And Night : Auto / Day / Night (IR cut filter)
  • Backlight Compensation : Off / BLC / WDR
  • Wide Dynamic Range : 128x , 52dB
  • Contrast Enhancement : XDR (eXtended Dynamic Range) - Off /Low / Middle /High
  • Digital Noise Reduction : Motion adaptive 2D +3D noise filter (Off / Low / Middle / High /User)
  • Digital Image Stabilization : Off / On
  • Motion Detection : Off / On (4 programmable zones)
  • Privacy Masking : Off / On (12 polygonal programmable zones, 4 point polygonal method)
  • Sens-up frame Integration : Off / Auto (2 x ~512x)
  • Gain Control : AGC (Low/Middle / High)
  • White Balance : ATW1 / ATW2 / AWC /3200K / 5600K
  • Electronic Shutter Speed : Off / Auto (1/100~1/10Ksec)
  • Digital Zoom : 16x
  • Flip-Mirror : Off / On
  • Profile : Standard / ITS / Backlight / Day & Night / Gaming / Custom
  • Intelligent Video Analytics : Scene Change, Virtual Line , Enter / Exit, Appear/ Disappear
  • PIP : Off /On
  • Operational Alarm I-O : Input 2ea / Output 2ea (Relay)

General

  • Chipset : WisenetI

Lens

  • Lens Type : Manual / DC auto iris
  • Mount Type : C / CS

Video

  • Imaging Devise : 1/3"" Super HAD PS CCD
  • Total Pixels : 811(H) x 508(V)
  • Effective Pixels : 768(H) x 494(V)
  • Scanning System : Progressive (If WDR on, Interlaced scan)
  • Min Illumination TBD Colour : Colour : 0.4Lux (F1.2, 5OIRE), 0.001 Lux (Sens- up 512x)
  • Min Illumination TBD B-W : B/W: 0.04Lux (F1.2m 5OIRE), 0.0001Lux (Sens-up 512x)
  • S-N Ratio : 52dB
  • Video Output : CVBS: 1.0Vp-p /75O composite

Electrical

  • Input Voltage-Current : 12V DE, 24V AC / PoE (IEEE802.3af)
  • Power Consumption : Max. 8W

Environmental

  • Operating Temperature : -10°C~+50°C (+14°F~ +122°F)
  • Operating Humidity : 20% ~80% RH

Mechanical

  • Colour-Material : Silver /Metal
  • Dimensions WxHxD : 72.0 x 60.0 x 136.8mm (2.83"" x 2.36"" x 5.39"")
  • Weight : 300g (0.66lb)
  • SNB-2000

    SNB-2000
