BOSCH Sound projector 12W metal bi-directional

Bosch Sound projector 12W metal bi-directional

Brend: Bosch
Kod proizvoda: Bosch Sound projector 12W metal bi-directional
Dostupnost: Na lageru

Pozvati za cenu

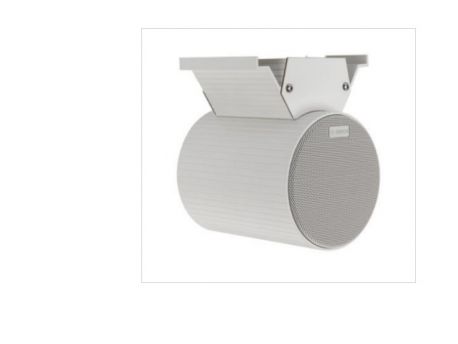

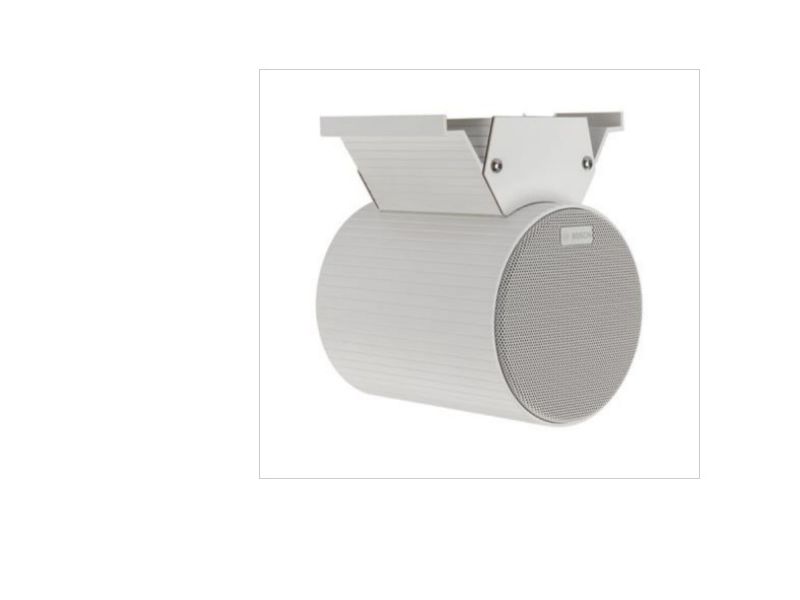

The LBC 3430/03 is a 12 W bidirectional sound projector intended for speech and music reproduction in indoor and outdoor applications. The two loudspeakers facing in opposite directions are ideally suited to applications such as subway tunnels, long corridors and shopping arcades. The sturdy, aluminum enclosure is finished in the color white. It has provisions for cable loop-through connection and inside mounting of a line- or loudspeaker- supervision board. The sound projector is suitable for use in voice alarm systems.

- Excellent speech and music reproduction
- Ceiling and/or wall mounting
- Robust aluminum extrusion enclosure
- Water and dust protected to IP 55
- EN 54‑24 certified

Color	White; Customized colors
Coverage angle HxV (-6 dB, 1 kHz) (°)	158 x 158 °
Coverage angle HxV (-6 dB, 4 kHz) (°)	48 x 48 °
Dimensions (Ø x D) (mm)	146 x 186 mm
Frequency range (-10 dB) (Hz)	200 – 19000 Hz
IP rating	IP55
Material	Aluminum
Operating temperature (°C)	-25 – 55 °C
Rated input voltage (V)	70 V; 100 V
Rated power (W)	12 W
Sensitivity (1 W, 1 m, 1 kHz octave) (dB)	93 dB
Sensitivity (1 W, 4 m, 100 Hz - 10 kHz) (dB)	79 dB
Storage temperature (°C)	-40 – 70 °C
Weight (kg)	3.5 kg
