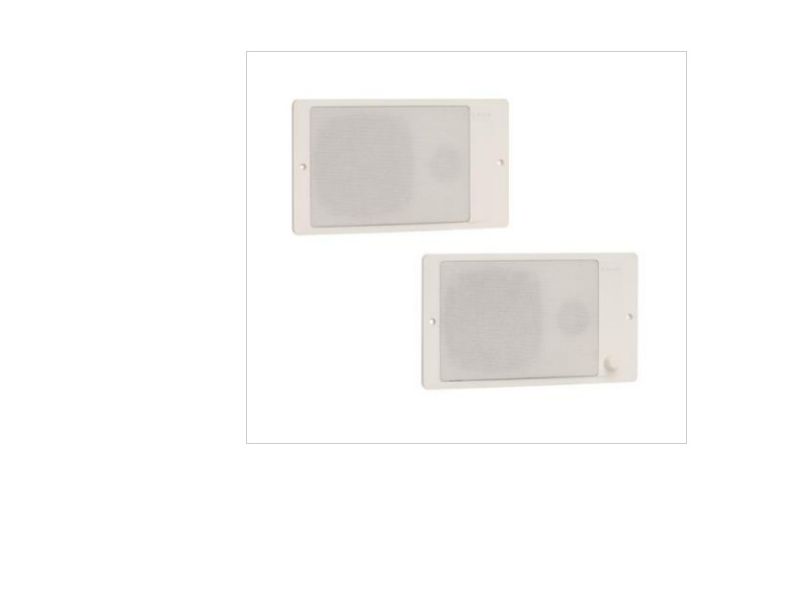

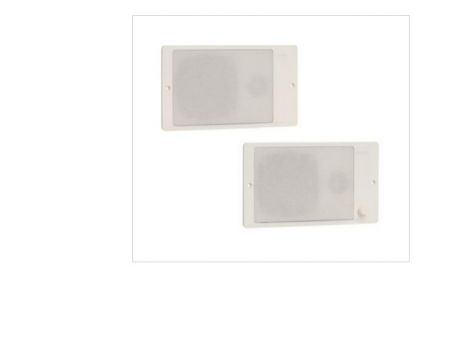

Bosch Panel loudspeaker, 6W
The Bosch panel loudspeakers and matching mounting boxes are ideal for built-in sound installations in shops, department stores, schools, offices, hotels and restaurants. They are manufactured and finished to the same exacting standards as all Bosch public address systems and components, guaranteeing high quality, and compatibility throughout the range
- - High-quality speech and music reproduction
- - Two-way system
- - Simple power setting
- - Flush-mounting in walls, ceilings, or furniture
- - Surface-mounting and flush mounting boxes
- - Complies with international installation and safety regulations
- - BS 5839‑8 compliant
| Color | White; Customized colors |
| Coverage angle HxV (-6 dB, 1 kHz) (°) | 180 x 180 ° |
| Coverage angle HxV (-6 dB, 4 kHz) (°) | 92 x 82 ° |
| Coverage angle HxV (°) | 160 x 180 ° |
| Dimensions (H x W x D) (mm) | 165 x 284 x 59.50 mm |
| Frequency range (-10 dB) (Hz) | 65 – 18000 Hz |
| Material | Plastic; Metal |
| Operating temperature (°C) | -25 – 55 °C |
| Rated input voltage (V) | 100 V |
| Sensitivity (1 W, 1 m, 1 kHz octave) (dB) | 90 dB |
| Storage temperature (°C) | -40 – 70 °C |
| Weight (kg) | 1.20 kg |
-
Data_sheet_enUS_1901186443
-
EU_CE_Certificate_EU_CE_all_18014441600079883
-
Certificate_GB_UKCA_enUS_96026119307
