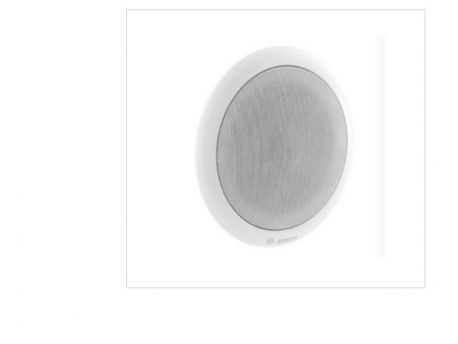

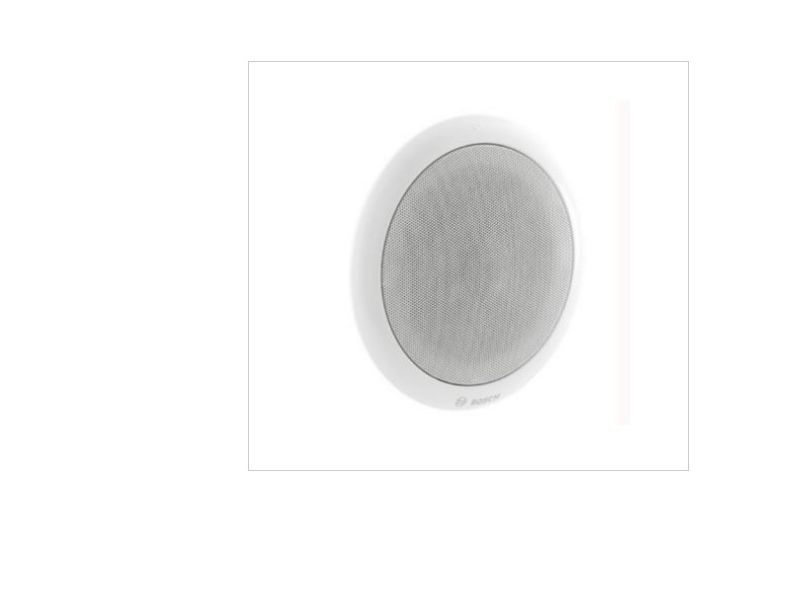

Bosch Ceiling loudspeaker, 6W, metal, 4''
Pozvati za cenu
The LC1 Modular Ceiling Loudspeaker range can be used for a wide variety of ceiling environments. They provide excellent speech and music in indoor public address applications. The range offers a choice of five loudspeakers distinguished by input power, opening angle and sound reproduction. It includes three 6 W dual cone loudspeakers offering a choice of opening angle and two high performance 12 W and 24 W coaxial loudspeaker drivers. They all have the same grille size and can be used in combination with the same mounting accessories.
- - Excellent speech and music reproduction
- - Easy installation with one grille size and one complete set of accessories
- - Choice of different ceiling mounting methods
- - Optional Pilot Tone indication
- - 7EN 54‑24, UL2043, UL1480 certified
| Color | White; Customized colors |
| Coverage angle HxV (-6 dB, 1 kHz) (°) | 180 x 180 ° |
| Coverage angle HxV (-6 dB, 4 kHz) (°) | 128 x 128 ° |
| Dimensions (Ø x H) (mm) | 220 x 125 mm |
| Frequency range (-10 dB) (Hz) | 85 – 20000 Hz |
| Material | Steel |
| Operating relative humidity, non-condensing (%) | 0 – 95 % |
| Operating temperature (°C) | -25 – 55 °C |
| Sensitivity (1 W, 1 m, 1 kHz octave) (dB) | 88 dB |
| Storage temperature (°C) | -40 – 70 °C |
| Weight (kg) | 1.18 kg |
-
LC_1_Modular_Ceeilin_Data_sheet_enUS_1924358923 (1)
-
LC1_Installation_Manual_enUS_27021599688650251 (1)
-
Certificate_PL_CNBOP_plPL_9007201179171211
-
Declaration_of_Compl_Certificate_GL_DOC_enUS_9007243221468427 (12)
