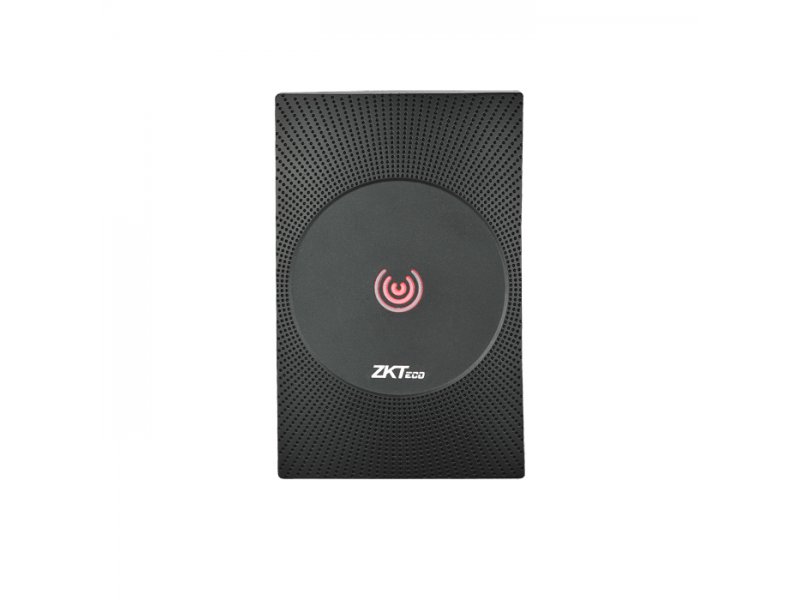

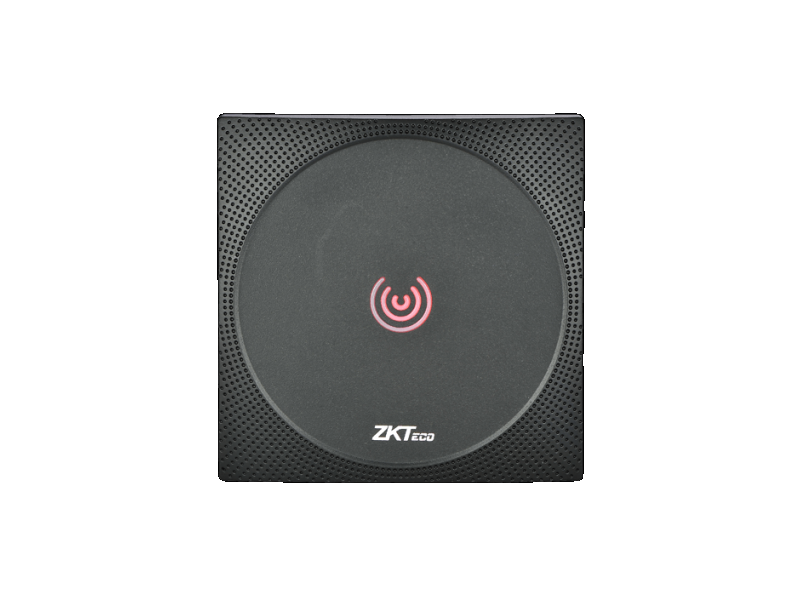

ZKTECO KR600 Series Wiegand Card Readers
Pozvati za cenu
- 125kHz EM or 13.56MHz Mifare card reader
- Wiegand interface
- • Read range of up to 10cm for proximity card and 5cm for Mifare card
• External LED control
• External Buzzer Control
• Indoor/Outdoor operation
• Solid Epoxy potted
• Waterproof IP64 or IP65
• Reverse Polarity Protection
-
Technical Specifications
Read Range
• KRxxx-E: Up to 10CM • KRxxx-M: Up to 5CM
Reading Time
• ≤300ms
Input Port
• External LED Control • External Buzzer Control
Output Port
• KRxxx-E: 26bit Wiegand (Default) • KRxxx-M: 34bit Wiegand (Default)
Power/Current
• DC 6-14V / Max.70mA
LED
• Red and Green LEDs
Operating Temperature
• -10°C to +65°C
Material
• ABS+PC with texture
Operating Humidity
• 10% to 90% relative humidity • non-condensing
Beeper
• Yes
Index of Protection
• KR600-E/M: IP65 • KR601-E/M: IP65 • KR602-E/M: IP64
KR600 Series
2.85MBData Sheet
