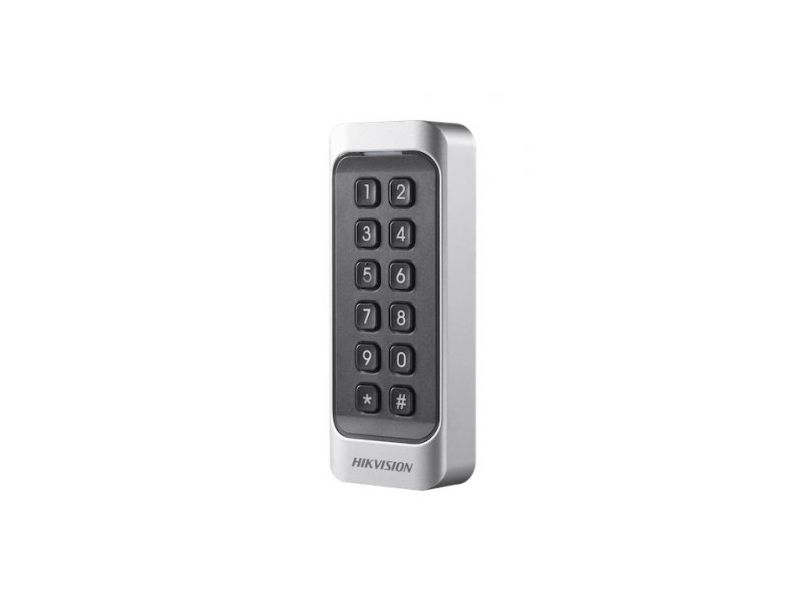

HIKVISION DS-K1107AEK
Card Reader
- Equipped with the 32-bit high-speed processor
- RS-485 and Wiegand (W26/W34) protocol, and OSDP protocol
- Build-in EM card reading module (Frequency:125KHz).
- Supports tampering alarm
- Built-in buzzer for identifying the reading status
- Online upgrade function
- Watchdog design for repairing itself in case that exception occurs, to ensure the long service life of the reader
- IndicatorPower indicator, status indicator
- Power Supply12 VDC
- Power Consumption≤2 W
- Working Temperature-20 °C to 65 °C (-4 °F to 149 °F)
- Working Humidity10% to 90% (Non Condensing)
- Protective LevelIP65
- Dimensions115 mm × 44 mm × 22 mm (4.53'' × 1.73'' × 0.87'')
- InstallationWall Mounting with Screws; Do Not Support Gang Box
- KeypadKeypad with 12 Keys (0~9, *, #)
- BuzzerSupport
-
DS-K1107AEK specifikacije
