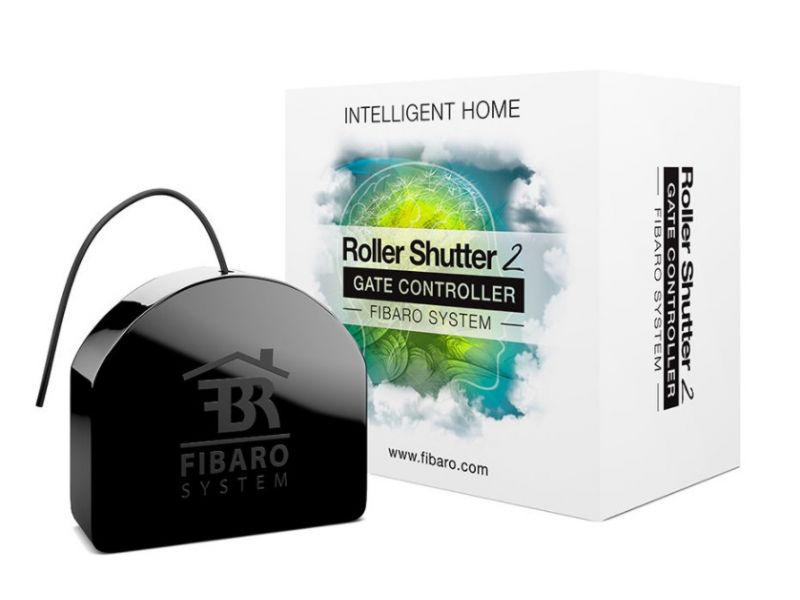

FIBARO Roller Shutter 2
.png "Battery")
FIBARO Roller Shutter 2 is a module designed to control roller blinds, awnings, venetian blinds, gates and other single phase, AC powered devices. FIBARO Roller Shutter 2 allows precise positioning of roller blinds or venetian blind lamellas. The device is equipped with power and energy monitoring.
As with all other Actors, FIBARO Roller Shutter 2 allows to control connected devices either via the Z-Wave network or via a switch connected directly to it.
- Compatible with any Z-Wave Controller
- Advanced microprocessor control
- Executive element – electromagnetic, micro-gap relay switch
- Works with various types of switches – momentary, toggle and dedicated roller blind switches
- Active power and energy metering functionality
- To be installed in wall switch boxes of dimensions allowing for installation, conforming to provisions of applicable regulations
Danger of electrocution!
The device is designed to operate in electrical home installation. Faulty connection or use may result in fire or electric shock.
All works on the device may be performed only by a qualified and licensed electrician. Observe national regulations.
Even when the device is turned off, voltage may be present at its terminals. Any maintenance introducing changes into the configuration of connections or the load must be always performed with disabled fuse
Required overcurrent protection
The device must be protected with an overcurrent protection (fuse) with a value not higher than 10A.
Escape route
It is not recommended to operate all of the roller blinds simultaneously. For safety reasons, at least one roller blind should be controlled independently, providing safe escape route in case of emergency.
Maintenance
It is recomended to monitor regulary operation of FIBARO Roller Shutter 2 in all modes. In case of gate control mode device, motor limit switches, infrared barriers and emergency stop should be monitored and maintained regulary .
| Power supply: | 110-240 V AC, 50/60 Hz |
| Rated load current: | 4.2A for lamps and resistive loads 1.7A for motors with compensated power factor (inductive loads) |
| Type of supported motor: | single-phase AC motors |
| Supported limit switches type: | electronic and mechanic |
| Power consumption: | up to 0.8W |
| In accordance with EU standards: | RED 2014/53/EU RoHS 2011/65/EU |
| Operational temperature: | 0-35°C |
| Active element: | micro-gap relay switch μ |
| For installation in boxes: | Ø ≥ 50mm, depth ≥ 60mm |
| Radio protocol: | Z-Wave |
| Radio signal power: | up to 1mW |
| Radio frequency: | 868.4 MHz EU; 908.4 MHz US; 921.4 MHz ANZ; 869.0 MHz RU; 865.2 MHz IN; |
| Range: | up to 50 m outdoors up to 30 m indoors (depending on building materials) |
| Dimensions: (L x W x H)): | 42.50 x 38.25 x 20.30 mm |
-
FGR-222-EN-A-v1.1
-
