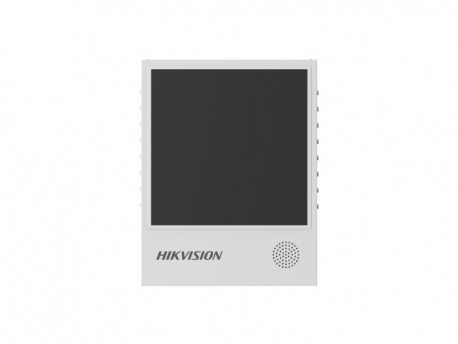

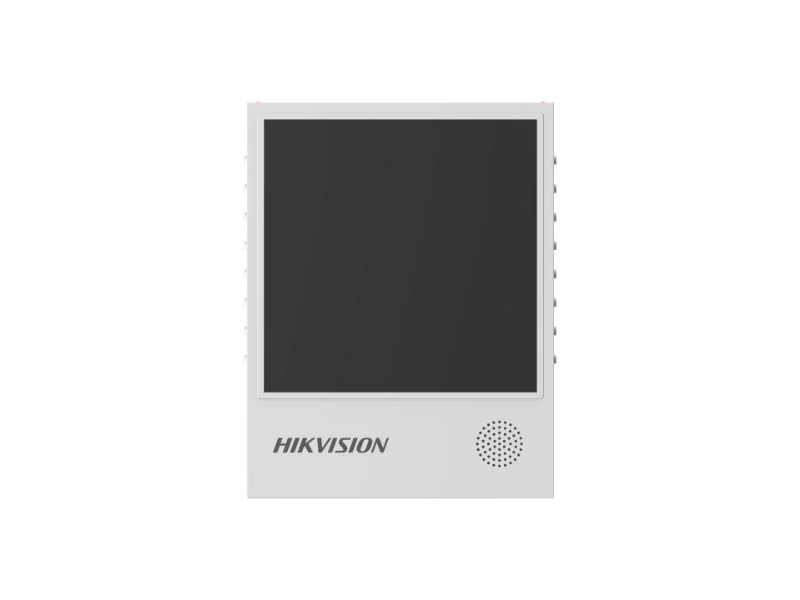

HIKVISION DS-TVL224-4-5Y

Brend: HIKVISION
Kod proizvoda: HIKVISION DS-TVL224-4-5Y
Dostupnost: Na lageru

Pozvati za cenu

Opis
Specifikacija

Spoljni LED ekran za parking i ulaz/izlaz vozila, dizajniran da prikazuje informacije kao što su broj slobodnih parking mesta, registarski brojevi, poruke dobrodošlice, vreme i druge tekstualne podatke na ulazima i izlazima parking zona ili kontrolnih tačaka.

Ekran koristi LED matricu sa više linija i karaktera, podržava komunikaciju putem RJ45/RS485 i može prikazivati dinamične poruke koje mu šalje kontrolni sistem ili server.

Pixel PitchP4.75
Resolution64*64
Display ContentGB2312 Character Set，16*16 Lattice Chinese Characters
Screen TypeLED
Display ColorRed,Green,Yellow
Number of Module2
Viewing Angle120° (H) / 120° (V)
Display Modeinstant，left shift，up forward，etc.
Pixel Pitch Category4.75
Color Temperature3000k to 6000k
Brightness Uniformity≥95%
Color Uniformity≥95%
Contrast Ratio2000 : 1
Luminance3500cd/m²
Scanning Mode8S
Communication ModeTCP

Approval
ProtectionIP54

General
Screen Border MaterialIron Frame Spraying Plastic（Dark armored glass for display part）
Working Temperature and Humidity
-30 to 60 °C

10% to 85% RH
Power SupplyAC110-240V,50/60Hz,max0.5A
Package Dimensions470mm*615mm*200mm
Dimensions355 × 495 × 80 mm (13.98 × 19.47 × 2.56 inch)
8 kg (17.64 lb.)
Weight (with Package)9.6 kg (21.16 lb.)
Storage Temperature and Humidity
-40 to 70 °C

10% to 85% RH
Average Consumption20W
Max. Consumption70W
Lifespan100000Hours
