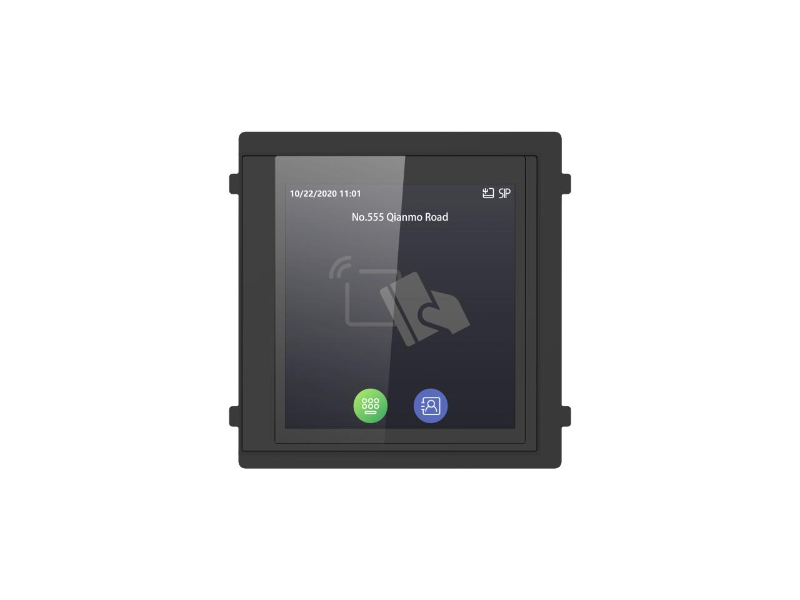

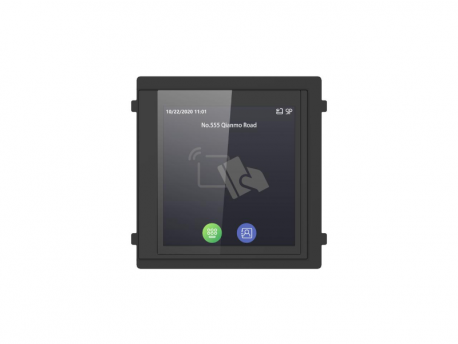

HIKVISION DS-KD-TDE

Brend: HIKVISION
Kod proizvoda: HIKVISION DS-KD-TDE
Dostupnost: Na lageru

Pozvati za cenu

Ekran: 4-inch, IPS touch screen, 480 x 480

Povezivanje: RS485 (1 ulaz, 1 izlaz)

DIP switch: 8

Funkcije: Mogućnost pozivanja unošenjem broja stana, putem kontakt liste, otključavanje vrata šifrom ili prinošenjem kartice (EM 125 KHz), Poseduje tzv advertisement mode ( za reklamiranje sadržaja)

Napajanje i potrošnja: od prethodnog modula/DS-KD8003, ≤ 10W

Radna temperatura: -40° C to +55° C

Zaštita: IP65, IK8

Dimenzije (DxŠxV): 100 mm × 100 mm × 35 mm

Način ugradnje: Nazidna, uzidna

 Specific ation System parameters Operation system Linux ROM 32 MB RAM 128 MB Display parameters Screen size 4-inch Type IPS Resolution 480 × 480 Brightness Adjustable, Max.500 cd/m2 Audio parameters Audio input / Audio compressio n standard / Audio output 1 buzzer Audio compressio n bitrate / Audio quality / Volume adjustment / Loudspeake r consumptio n / Network parameters Wireless network AP mode Authentication Card reading frequency 125 KHz Card reading distance 2 cm Card type EM card Device interfaces TF card Reserved DIP switch 8 bits
