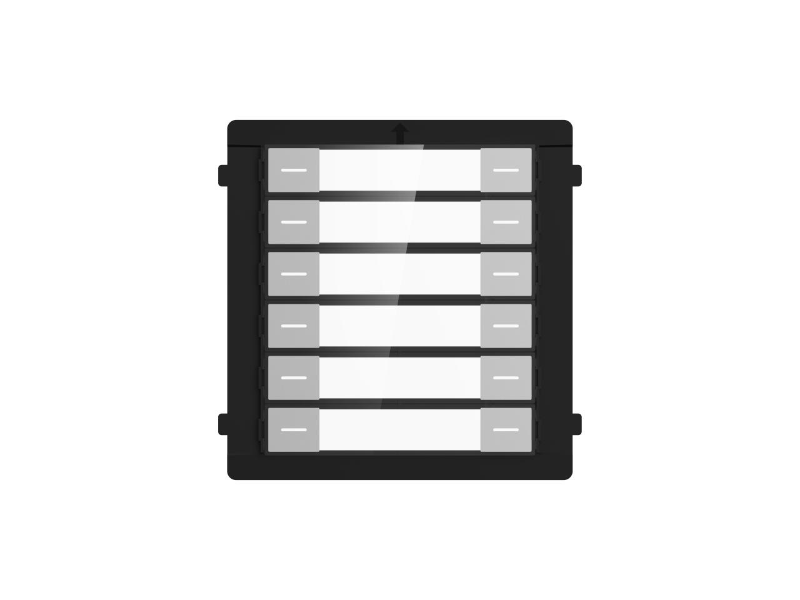

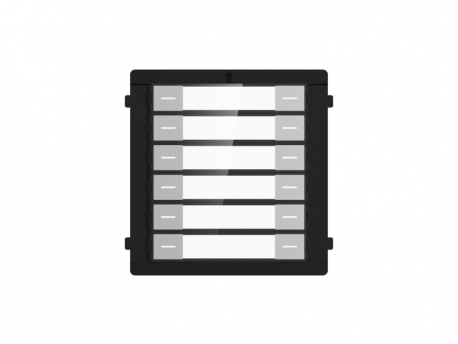

HIKVISION DS-KD-K12

Brend: HIKVISION
Kod proizvoda: HIKVISION DS-KD-K12
Dostupnost: Na lageru

Pozvati za cenu

Povezivanje: RS485 (1 ulaz, 1 izlaz)

DIP switch: 8

Funkcije: Pozivanje unutrašnjih jedinica

Napajanje I potrošnja: od prethodnoh modula/DS-KD8003(Y, EY), ≤ 2 W

Radna temperatura: -30° C to +55° C

Zaštita: IP65

Dimenzije (DxŠxV): 98.2 mm × 100.2 mm × 33.7 mm

Način ugradnje: Nazidna, uzidna

Težina: 179 g

 Specification System parameters Operation system Linux ROM / RAM / Processor Embedded high performance processor Device interfaces RS-485 1 General Button 12 physical buttons Power consumption ≤ 2 W Indicator / Weight Net weight: 179 g; Gross weight: 336.4 g Protective level IP65 Working temperature -30 °C to 55 °C Working humidity 10% to 90% (no-condensing) Dimension (W × H × D) 98.2 mm × 100.2 mm × 33.7 mm (3.87" × 3.95" × 1.33") Installation Flush mounting, surface mounting
