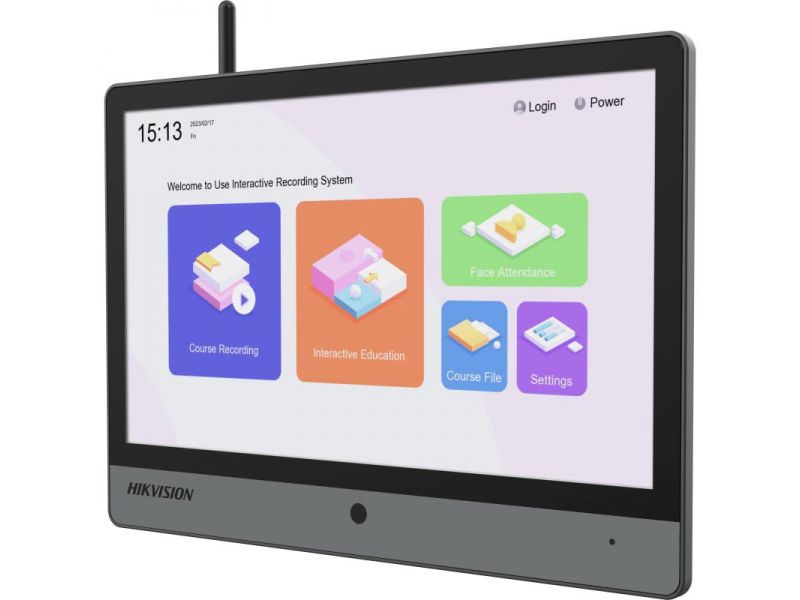

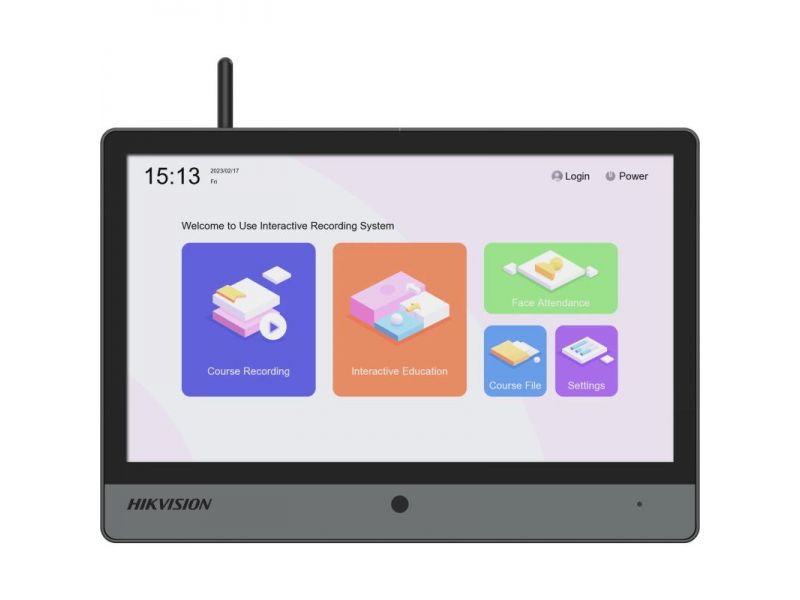

HIKVISION HIKVISION DS-9604LNI-V/B12

Brend: HIKVISION
Kod proizvoda: HIKVISION HIKVISION DS-9604LNI-V/B12
Dostupnost: Na lageru

Pozvati za cenu

Education and sharing system

- hree live view control views are provided: movie mode, picture-in-picture mode, and multi-screen mode
- Auto live view control realizes automatic switch of teacher image, student image, and multimedia image, which helps to meet the demand of daily teaching requirement
- ACC format audio encoding technology, up to 48 KHz audio input sampling rate, and internal sound mixing feature provide high audio quality
- Synchronously collect the teacher image, student image, and multimedia image via HDMI input
- Real-time encoding for all cameras with up to 1080p resolution
- Support setting different resolution, frame rate, and bitrate for three streams, including main stream, sub-stream, and third stream
- Support searching, playback, and downloading courses by keywords
- Support publishing courses to FTP server by pressing the publish button on front panel
- Support manual live view control, RTMP live view, playback course, and configure course plan in remote client or platform
- Support RTMP multimedia

Video and Audio
IP Video Input5-ch
HDMI 1 Output
4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
HDMI 2 Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI Input1-ch; 4K (3840 × 2160)/30 Hz, 1920 × 1080/60Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1440 × 900/60 Hz, 1366 × 768/60 Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, 800 × 600/60 Hz
HDMI Loopback1-ch (matching HDMI video in)
LCD Output
15.6" TFT LCD FHD (1920 × 1080)

Support touch screen
Audio Output
1-ch dual track of 3.5 mm connector

1-ch dual track of green connector

2-ch dual track of HDMI interface
Audio Input
1-ch dual track of 3.5 mm line in

1-ch dual track of 3.5 mm mic in

2-ch single track of green connector;

1-ch dual track of HDMI in
Audio Sampling Rate48 KHz

Decoding
Decoding FormatH.265/H.264/MJPEG
Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p /VGA/4CIF/DCIF/2CIF/CIF/QCIF
Decoding Capability8-ch@1080p (25 fps, 5-ch for camera connection, 3-ch for interactive meeting)
Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
Synchronous playback1-ch
Dual-streamSupport

Network
Remote Connection128
Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface2, 1 RJ25 10M/100M/1000M Ethernet interface and 1 switch interface for PC/ops use
