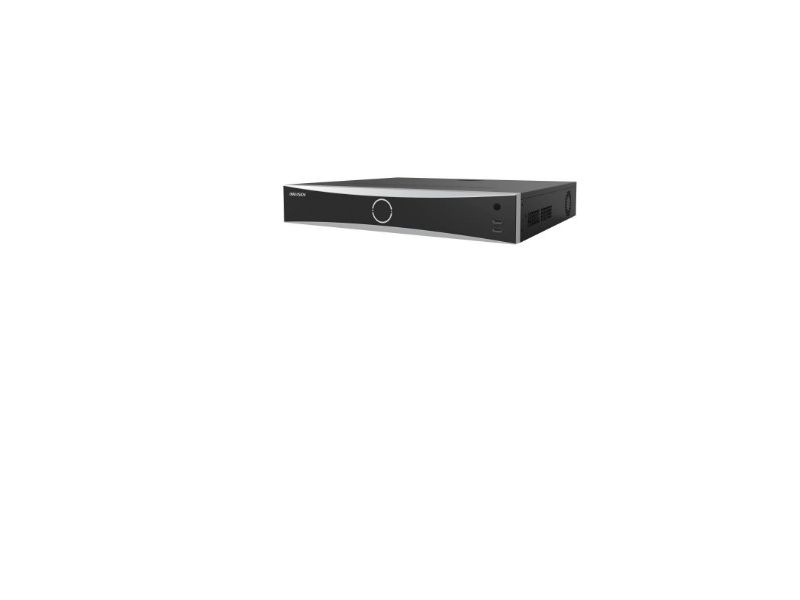

HIKVISION HIKVISION DS-7716NXI-I4/S

Brend: HIKVISION
Kod proizvoda: HIKVISION HIKVISION DS-7716NXI-I4/S
Dostupnost: Na lageru

Pozvati za cenu

16-ch 1.5U AcuSense 4K NVR

Intelligent Analytics
AI by NVRFacial recognition, perimeter protection, motion detection 2.0, AcuSearch
AI by CameraFacial recognition, perimeter protection, video structuralization, throwing objects from building, motion detection 2.0, ANPR, people counting, VCA
Engine1, engine mode is adjustable

Facial Recognition
Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
Face AttributesWearing glasses, wearing a mask, facial expression, body temperature
Face Picture LibraryUp to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 1 GB)
Face Picture Comparison (Captured from Camera)8-ch
Facial Detection and Analytics Performance4-ch human face capture (HD network camera, up to 2 MP, H.264/H.265)

Video and Audio
IP Video Input16-ch
Incoming Bandwidth160 Mbps
Outgoing Bandwidth256 Mbps
HDMI 1 Output4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz
HDMI 2 Output4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz
VGA Output1920 × 1080/60 Hz
Video Output ModeHDMI1/VGA simultaneous output, HDMI2/VGA independent output
CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)

Decoding
Decoding FormatH.265+/H.265/H.264+/H.264
Recording Resolution
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF

32MP/24MP/12MP/8MP/7MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

*: The NVR supports up to 4-ch 32 MP/24 MP IP video inputs.
Synchronous Playback16-ch
Live View Window Division1/2/4/6/8/9/16
Aux Port Window Division1/2/4/6/8/9/16
Decoding Capability
Enable AI by NVR: 20-ch@1080p (30 fps)

Disable AI by NVR: 32-ch@1080p (30 fps)
Dual-Stream RecordingSupport
Stream TypeVideo, Video & Audio
Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM

Network
Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Remote Connection128
Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
APIONVIF (profile S/G); SDK; ISAPI
Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
Camera Access ProtocolONVIF(Version 2.5), RTSP

Auxiliary Interface
Serial Interface2 RS-485 (half-duplex), 1 RS-232
SATA4 SATA interfaces
CapacityUp to 14 TB capacity for each disk
eSATA1 eSATA interface
Alarm In/Out16/9
USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Ctrl 12V
Controllable 12 VDC, 0.5 A power output for external alarm device; The power will be turned on when the alarm output is triggered.

*: The Ctrl 12V power is controlled by alarm output 9.
DC 12V12 VDC, 1 A power output

General
GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian, Hebrew
Power Supply100 to 240 VAC, 50 to 60 Hz
Consumption≤ 30 W (without HDD)
Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity10% to 90%
Chassis19-inch rack-mounted 1.5U chassis
Dimension (W × D × H)440 × 391 × 75 mm ( 17.3"× 15.4" × 3.0")
Weight≤ 3.6 kg (without HDD, 7.9 lb.)
