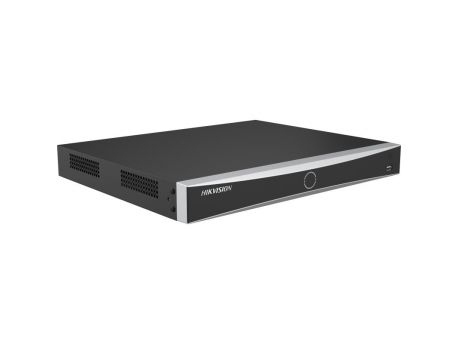

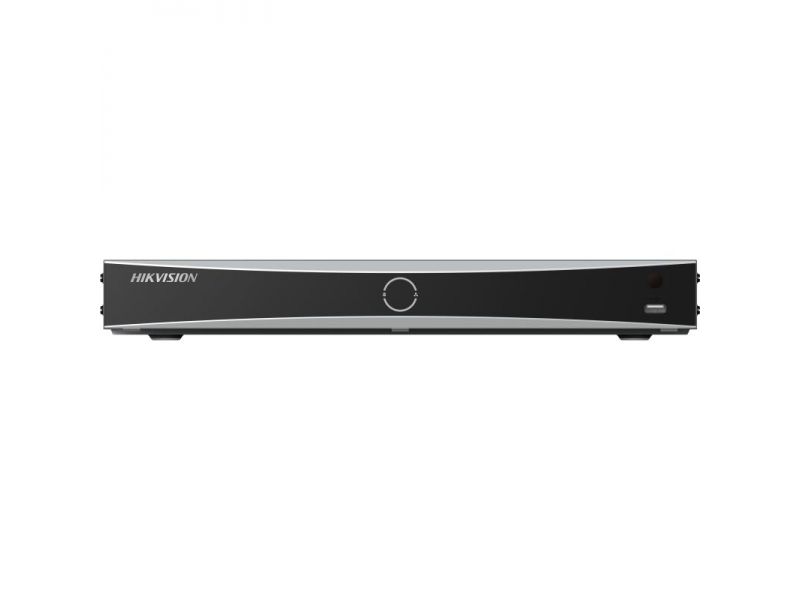

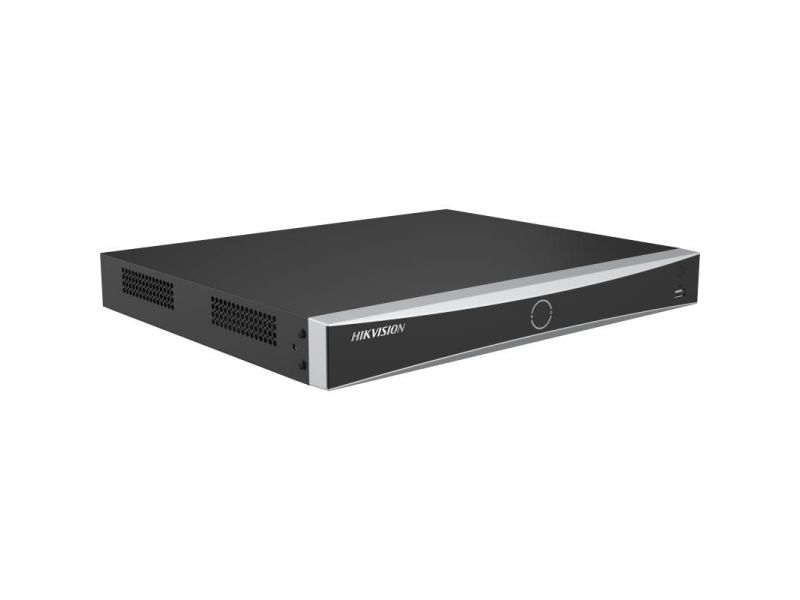

HIKVISION HIKVISION DS-7616NXI-I2/16P/VPro
Pozvati za cenu
AcuSense NVR
- - H.265+/H.265/H.264+/H.264 video formats
- - Intelligent analytics based on Guanlan Large-Scale AI Models
- - Up to 16-ch AcuSeek and AcuSearch function
- - Up to 8-ch facial recognition for face picture
- - Up to 16-ch IP camera inputs
- - Up to 32-ch 1080p decoding capability
- Intelligent Analytics
- AI by NVRFacial recognition
- AI by CameraFacial recognition, perimeter protection, video structuralization, AcuSearch, motion detection 2.0, ANPR, people counting, AcuSeek
- Engine2 engines. 1 is for face picture and AcuSearch. 1 is for AcuSeek
- Facial Recognition
- Face Picture LibraryUp to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 1 GB)
- Face Picture Comparison8-ch
- Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
- Facial Detection and Analytics Performance4-ch human face capture (HD network camera, up to 8 MP, H.264/H.265)
- AcuSearch
- PerformanceIf the cameras support Hikvision AcuSense Technology and have enabled AcuSearch function, the NVR supports AcuSearch in all channels, capable of modeling 300,000 targets/day.
- AcuSeek
- PerformanceIf the cameras support Hikvision AcuSense Technology and have enabled AcuSearch function, the NVR supports AcuSeek in all channels, capable of modeling 300,000 targets/day.
- Search LanguageEnglish
- ANPR
- By CameraAll channels
- Vehicle AttributesPlate number, license plate color, license plate type
- Plate AttributesVehicle brand, vehicle color, vehicle type
- Video and Audio
- IP Video Input16
- Incoming Bandwidth192 Mbps
- Outgoing Bandwidth256 Mbps
- HDMI Output4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1280 × 720/60 Hz
- VGA Output1920 × 1080/60Hz, 1280 × 720/60Hz
- Video Output ModeHDMI/VGA independent output
- CVBS OutputNA
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)
- Decoding
- Decoding FormatH.265, H.265+, H.264, H.264+, MPEG4
- Recording Resolution32MP/24MP/12MP/8MP/7MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous playback16-ch
- Dual-Stream RecordingSupport
- Live View Window Division1/4/6/8/9/16
- Aux Port Window Division1/4/6/8/9/16
- Stream TypeVideo, Video & Audio
- Decoding Capability
Enable AI by NVR: 20-ch@1080p (30 fps)
Disable AI by NVR: 32-ch@1080p (30 fps)
- Audio CompressionG.711ulaw,G.711alaw,G.722,G.726,MP2L2
- Network
- Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- PoE
- Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power≤ 200W
- StandardIEEE 802.3 af/at
- Auxiliary Interface
- SATA2 SATA interfaces
- CapacityUp to 20 TB capacity for each disk
- Serial InterfaceNA
- Alarm In/Out4/1
- USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
- General
- Power Supply≤ 180 W
- Consumption≤ 50W
- Working Temperature-10℃～＋55℃
- Working Humidity10％～90％
- Chassis1U
- Dimension (W × D × H)384 × 371 × 52 mm（15.12" × 12.48" × 2.03"）
- Weight≤ 4 kg (6.6 lb)
- Certification
- Obtained CertificationCE, CB, REACH, WEEE, UKCA, RCM,IC,LOA,KC
- CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
