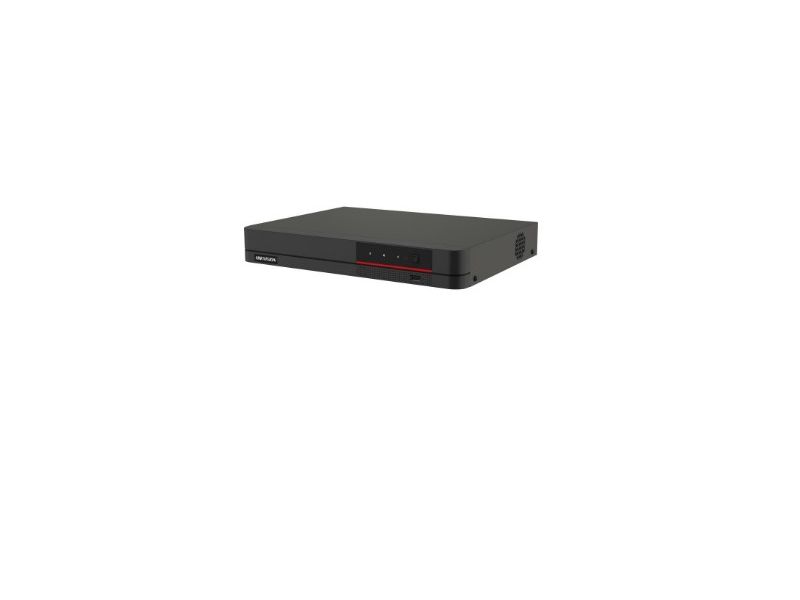

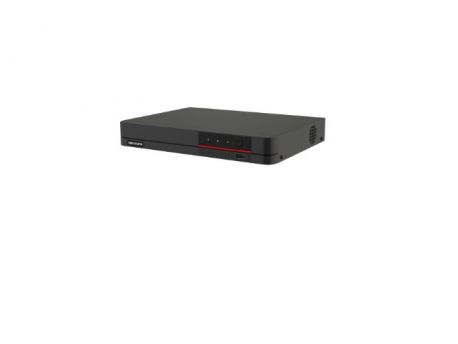

HIKVISION HIKVISION DS-7604NI-K1/4G
Pozvati za cenu
4-ch Mini 1U 4G NVR
- - Up to 4-ch IP camera inputs
- - Up to 40 Mbps incoming bandwidth, and 80 Mbps outgoing bandwidth
- - H.265+/H.265/H.264+/H.264 video compression
- - Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
- - 4G wireless network
- - Support network keep alive, data monitoring, used data real time display, and data usage notification
- Motion Detection 2.0
- Human/Vehicle Analysis4-ch
- Video and Audio
- IP Video Input4-ch
- Incoming Bandwidth40 Mbps
- Outgoing Bandwidth80 Mbps
- HDMI Output1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
- VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- Video Output ModeHDMI/VGA simultaneous output
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 KΩ)
- Decoding
- Decoding FormatH.265+/H.265/H.264+/H.264
- Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous playback4-ch
- Decoding Capability1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711ulaw,G.711alaw,G.722,G.726,AAC,MP2L2
- Network
- Network Interface1 RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Remote Connection32
- Wireless Parameter
- SIM/UIM Card Slot1 micro SIM card slot, on rear panel
- SMA Antenna Interface
1 4G interface, antenna module cable length: 3 m
1 ANT interface for GPS antenna (GPS antenna is optional)
- Wireless Standard
GSM/EDGE: 850/900/1800MHz
WCDMA: B1/B5/B8
LTE-FDD: B1/B3/B5/B7/B8/B20/B28
LTE-TDD: B38/B40/B41
- Auxiliary Interface
- SATA1 SATA interface
- Capacity
Up to 8 TB capacity for each disk
- USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
- General
- Power Supply12 VDC, 2 A
- Consumption≤ 10 W (without HDD)
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)320 × 240 × 48 mm (12.4" × 9.4" × 1.9")
- Weight≤ 1 kg (without HDD, 2.2 lb.)
-
Datasheet-of-DS-7604NI-K1_4G-NVRC_V4.31.510_20230218
