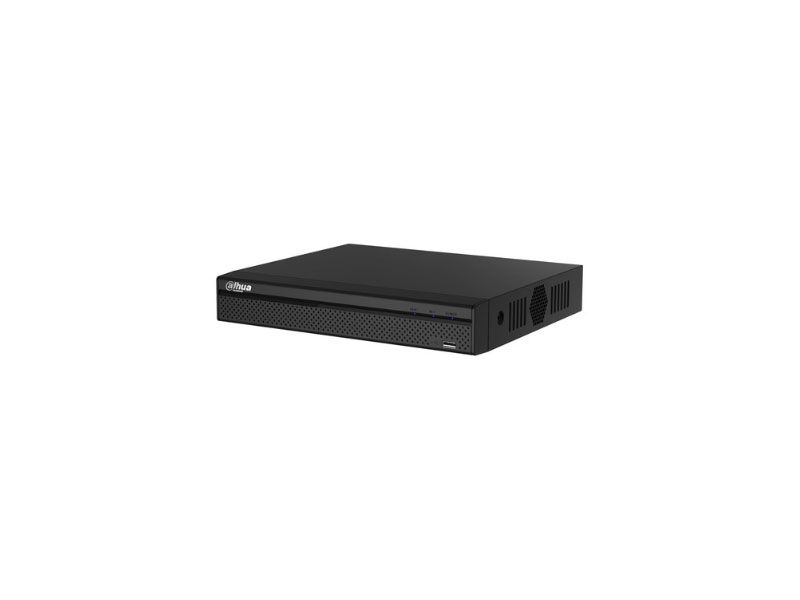

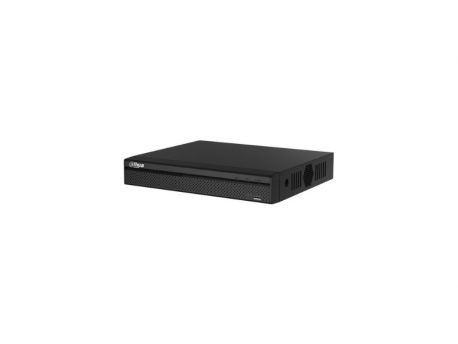

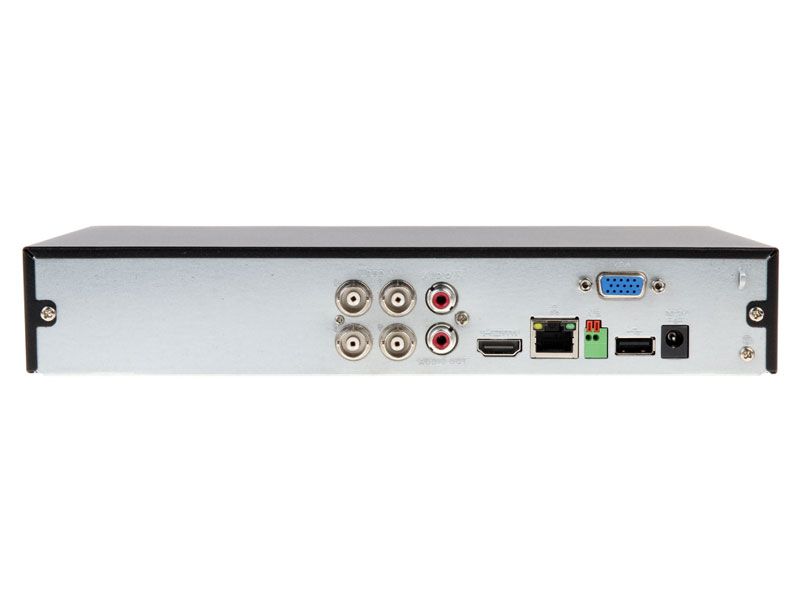

DAHUA XVR4104HS-X1

Brend: DAHUA
Kod proizvoda: DAHUA XVR4104HS-X1
Dostupnost: Na lageru
2MP
H265
1hdd
Cena: 6,426.00 RSD
Bez PDV-a: 5,355.00 RSD
H.265+/H.265 pentabrid digitalni video snimač, podržava 4 HDCVI / TVI / AHD / analogne kamere do 2MP i jednu dodatnu IP kamere do 2MP
H.265+/H.265 kompresija, snimanje HDCVI/AHD/TVI kamera do rezolucije 2MP, 1 audio ulaz, 1 audio izlaz, dvosmerna audio komunikacija, podržava audio preko koaksijalnog kabla,prvi kanal 1080N/720P 25fps, ostali kanali, 1 HDMI izlaz, 1 VGA izlaz, maksimalni kapacitet hard diska 6TB, 2 USB porta za bekap i kontrolu mišem, RS485 port za upravljanje PTZ kamerama, napajanje 12VDC/2A

System

Main Processor

Embedded Processor

Operating System

Embedded LINUX

Video and Audio

Analog Camera Input

4 Channel, BNC

HDCVI Camera

1080P@25/30fps, 720P@50/60fps, 720P@25/30fps

AHD Camera

1080P@25/30, 720P@25/30fps

TVI Camera

1080P@25/30, 720P@25/30fps

CVBS Camera

PAL/NTSC

IP Camera Input

4+1, each channel up to 2MP

Audio In/Out

1/1, RCA

Two-way Talk

Reuse audio in/out, RCA

Recording

Video Compression

H.265+/H.265/H.264+/H.264

Resolution

1080N, 720P, 960H, D1, CIF

Record Rate

Main Stream:

1080N/720P/960H/D1/CIF (1~25/30fps)

Sub stream:CIF (1~15fps)

Video Bit Rate

32Kbps ~ 4096Kbps Per Channel

Record Mode

Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop

Record Interval

1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

Audio Compression

AAC(only for the 1st channel), G.711A, G.711U, PCM

Audio Sample Rate

8KHz, 16 bit Per Channel

Audio Bit Rate

64Kbps Per Channel

Display

Interface

1 HDMI ,1 VGA

Resolution

1920×1080, 1280×1024, 1280×720

Multi-screen Display

When IP extension mode not enabled: 1/4

When IP extension mode enabled: 1/4/6

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Network

Interface

1 RJ-45 Port (100M)

Network Function

HTTP, HTTPS, TCP/IP, IPv4/IPv6, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF 16.12, CGI Conformant

Video Detection and Alarm

Trigger Events

Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

Video Detection

Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis

Alarm input

N/A

Relay Output

N/A

Playback and Backup

Playback

1/4

Search Mode

Time /Date, Alarm, MD and Exact Search (accurate to second)

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

Backup Mode

USB Device/Network

Storage

Internal HDD

1 SATA Port, up to 6TB capacity

eSATA

N/A

Auxiliary Interface

USB

2 USB 2.0

RS232

N/A

RS485

1 Port, for PTZ Control

Electrical

Power Supply

DC12V/1.5A

Power Consumption

(without HDD)

<10W

Construction

Dimensions

Compact 1U, 260×236×48mm(10.2"×9.3"×1.9")

Net Weight

(without HDD)

0.9kg ( 2.0lb)

Gross Weight

1.6kg (3.5lb)

Installation

Desktop installation

Environmental

Operating Conditions

-10°C ~ +45°C (+14°F ~ +113°F), up to 55°C/131°F with case fan, 10~ 90% RH

Storage Conditions

-20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH

Third-party Support

Third-party Support

Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Certifications

Certifications

FCC: Part 15 Subpart B

CE: CE-LVD: EN 60950-1/IEC 60950-1

CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024

  • XVR4104HS-X1

    XVR4104HS-X1
