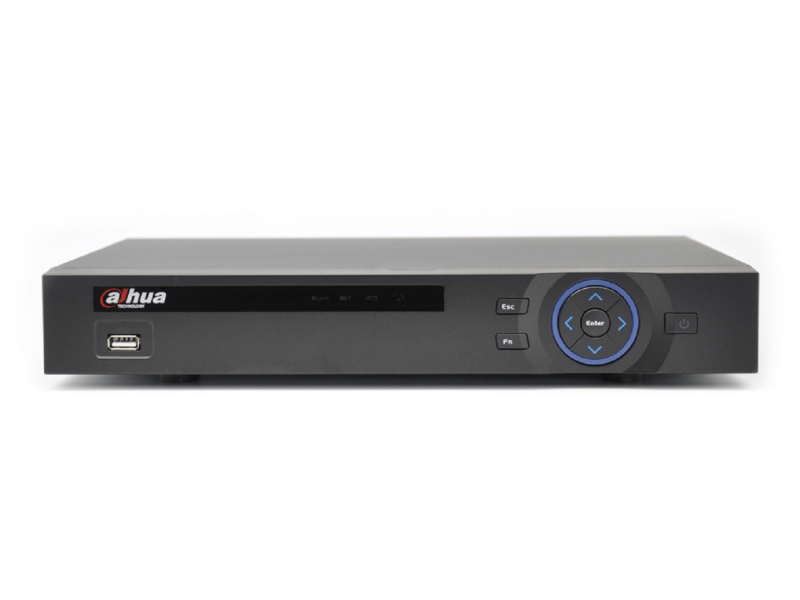

DAHUA DVR-5116HE

Brend: DAHUA
Kod proizvoda: DAHUA DVR-5116HE
Dostupnost: Na lageru

Cena: 13,446.34 RSD
Bez PDV-a: 11,205.28 RSD

Opis
Specifikacija

960H digitalni video snimač za 16 kanala, prikaz 400fps,

snimanje 400 frejmova po sekundi u 960H rezoluciji, H.264

kompresija, web server

BNC video izlaz, VGA video izlaz, HDMI video izlaz, 1 audio ulaz/izlaz,

16 alarmnih ulaza/ 1 alarmni izlaz, mogućnost povezivanja jednog SATA

hard diska do 4TB, 2 USB porta (za bekap i kontrolu mišem), RS485 za

kontrolu PTZ kamera, nadzor putem Interneta, softver za pametne

mobilne telefone, besplatni Dahua DDNS server, 12VDC

Model		DVR5104HE	DVR5108HE	DVR5116HE
System
Main Processor		Embedded processor
Operating System		Embedded LINUX
Video
Input		4 channel, BNC	8 channel, BNC	16 channel, BNC
Standard		NTSC(525Line, 60f/s), PAL(625Line, 50f/s)
Audio
Input		4 channel, RCA
Output		1 channel, RCA
Two-way Talk		Reuse audio input/output channel 1
Display
Interface		1 HDMI, 1 VGA, 1 TV, BNC(1.0Vp-p, 75Ω)
Resolution		1920×1080, 1280×1024, 1280×720, 1024×768, 800×600
Display Split		1/4	1/4/8/9	1/4/8/9/16
Privacy Masking		4 rectangular zones (each camera)
OSD		Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Video/Audio Compression		H.264 / G.711
Resolution		960H/D1/4CIF(704×576/704×480) / CIF(352×288/352×240) / QCIF(176×144/176×120)
Record Rate	Main Stream:	960H/D1(1~25/30fps)
	Extra Stream	QCIF(1-25/30fps)/CIF(1-6/7fps)
Bit Rate		48~3072Kb/s
Record Mode		Manual, Schedule(Regular(Continuous), MD), Stop
Record Interval		1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection& Alarm
Trigger Events		Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips
Video Detection		Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input		4 channel	8 channel	16 channel
Relay Output		3 channel		1channel
Playback & Backup
Sync Playback		1/4	1/4/9	1/4/9/16
Search Mode		Time/Date, MD & Exact search (accurate to second)
Playback Functions		Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode		USB Device / Network
Network
Ethernet		RJ-45 port (10/100M)
Network Functions		HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter
Max. User Access		20 users
Smart Phone		iPhone, iPad, Android, Windows Phone
Storage
Internal HDD		1 SATA port, up to 4TB
Auxiliary Interface
USB Interface		2 ports (1 Rear), USB2.0
RS485		PTZ control
General
Power Supply		DC12V/2A
Power Consumption		10W(without HDD)
Working Environment		-10 ~+55°C / 10~90%RH / 86~106kpa
Dimension(W×D×H)		Mini 1U, 325mm×245mm×45mm
Weight		1.5KG(without HDD)
