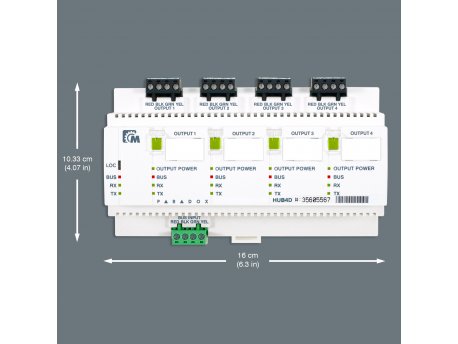

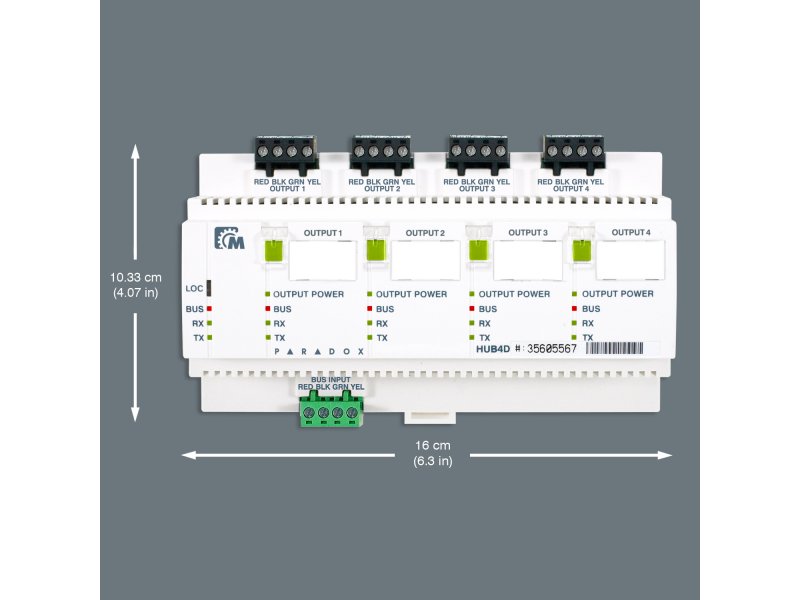

Paradox HUB4D
Compatible with EVO48 and EVO192
Divides the bus into four completely isolated outputs (if one output fails, the others will continue to function)
One input port, 4 completely isolated output ports
Each output port provides communications up to 900m (3000ft)
Opto-isolated ports provide protection from high-voltage spikes (ideal for exterior lines)
In-field firmware upgradeable via bus at high speed (RS-485)
DIN rail enclosure with removable terminals
Supports 35mm DIN Rail mounting or wall mounting with retractable mounting clips
On-board buttons to manually activate or deactivate each hub output
4-LED status display per hub output
3-LED module status display
Includes labels to identify each output
Divides the bus into four completely isolated outputs (if one output fails, the others will continue to function)
One input port, 4 completely isolated output ports
Each output port provides communications up to 900m (3000ft)
Opto-isolated ports provide protection from high-voltage spikes (ideal for exterior lines)
In-field firmware upgradeable via bus at high speed (RS-485)
DIN rail enclosure with removable terminals
Supports 35mm DIN Rail mounting or wall mounting with retractable mounting clips
On-board buttons to manually activate or deactivate each hub output
4-LED status display per hub output
3-LED module status display
Includes labels to identify each output
