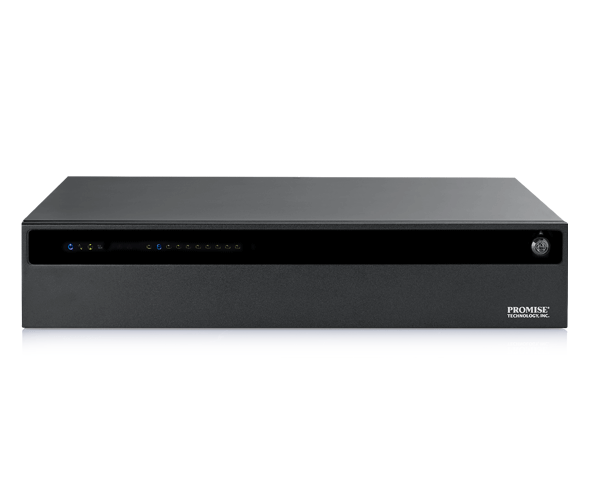

PROMISE Vess A3340 + 8GB RAM
Cena: 1,699,200.00 RSD
Bez PDV-a: 1,416,000.00 RSD
Bez PDV-a: 1,416,000.00 RSD
-
Ideal for mid-sized video surveillance installations.
- Reliable, cost-effective and easy to deploy and maintain.
- Powerful solution that enables it to easily handle the intensive demands of the latest VMS and analytics.
- Perfect for up to 100 IP cameras
- Out of the box solution
- 3 year warranty – can extend to 5 years
- 2U 8-bay rackmount chassis
- Ideal for banks, casinos, prisons, schools, transportation, city surveillance, public facilities, government
- Dual redundant PSUs - guarantees the system while remain operating even when one PSU fails
SPECIFIKACIJA
Ideal Camera Range
Up to 100*
Form Factor
2U, 19" Rackmount
Drive Support
8 Drives (3.5") , SATA
Controller(s)
Dual
System Processor
Intel® Xeon® E3, Optional Intel® Core i3/i5/i7
System Memory
8GB DDR4 (Max. to 32GB)
Interface
2 x Gigabit Ethernet
Internal Built-in Storage for OS
M.2 128GB
Storage Expansion
iSCSI
Max. # of HDDs Supported
Up to 112 drives through iSCSI & JBOD expansion
USB Ports
6x USB 3.0, 2x USB 2.0
PCI Express Ports
1 x PCIe 3.0 x 8
1 x PCIe 3.0 x 4
1 x PCIe 3.0 x 4
Graphics
D-sub, HDMI and Display Port
Serial Interfaces
1x RS-232
Audio & Microphone
3x 3.5mm Audio Jack + SPDIF
RAID Levels
0, 1,1E, 3, 5, 6, 10 (0+1), 30, 50; Any Combination can exist at the same time
Hot Spares
Multiple global or dedicated hot-spare drives with revertible option
Max LUNs per system/array
256/32
Supported OS (64-bit)
Windows 7, Windows 10, WS2012R2, WS2016
Management Tools/Interface
Graphical UI/SNMP via Ethernet, CLI/CLU via Ethernet or Graphics, OPAS Service via USB, SDK or API for Integration
Surveillance Optimization
SMARTBOOST™ Storage/Video
Event Notification
Email, SNMP, Buzzer, LEDs
AC Input
100 ~ 240 VAC, 60 ~ 50Hz
Current (Maximum)
1A - 2A
Power Consumption
250W
BTU
853.25 BTU/h
Power Supply
350W per Power Supply
FAN
Redundant
Temperature Range
5° ~ 40°C (-40° ~ 60°C non-operational)
Dimensions
88.2 x 440 x 410 mm
(3.5 x 17.3 x 16.1 in)
(3.5 x 17.3 x 16.1 in)
Weight
9.24kg (20.37 lbs) w/o drives 14.6kg (32.19lbs) w/drives
Safety and EMI Certification
FCC / CE / VCCI / RCM / BSMI / UL / cUL / Nemko
Warranty
3 year limited warranty
Optional Accessories
Sliding Rail, 2/4/8/16GB DDR Memory
*This number are tested under criteria w/o frame lost at 720p@30fps@H.264
-
Vess+A3340+DS_A4_EN_20181114
